AC Infinity 8-Inch Backdraft Damper Duct Insert

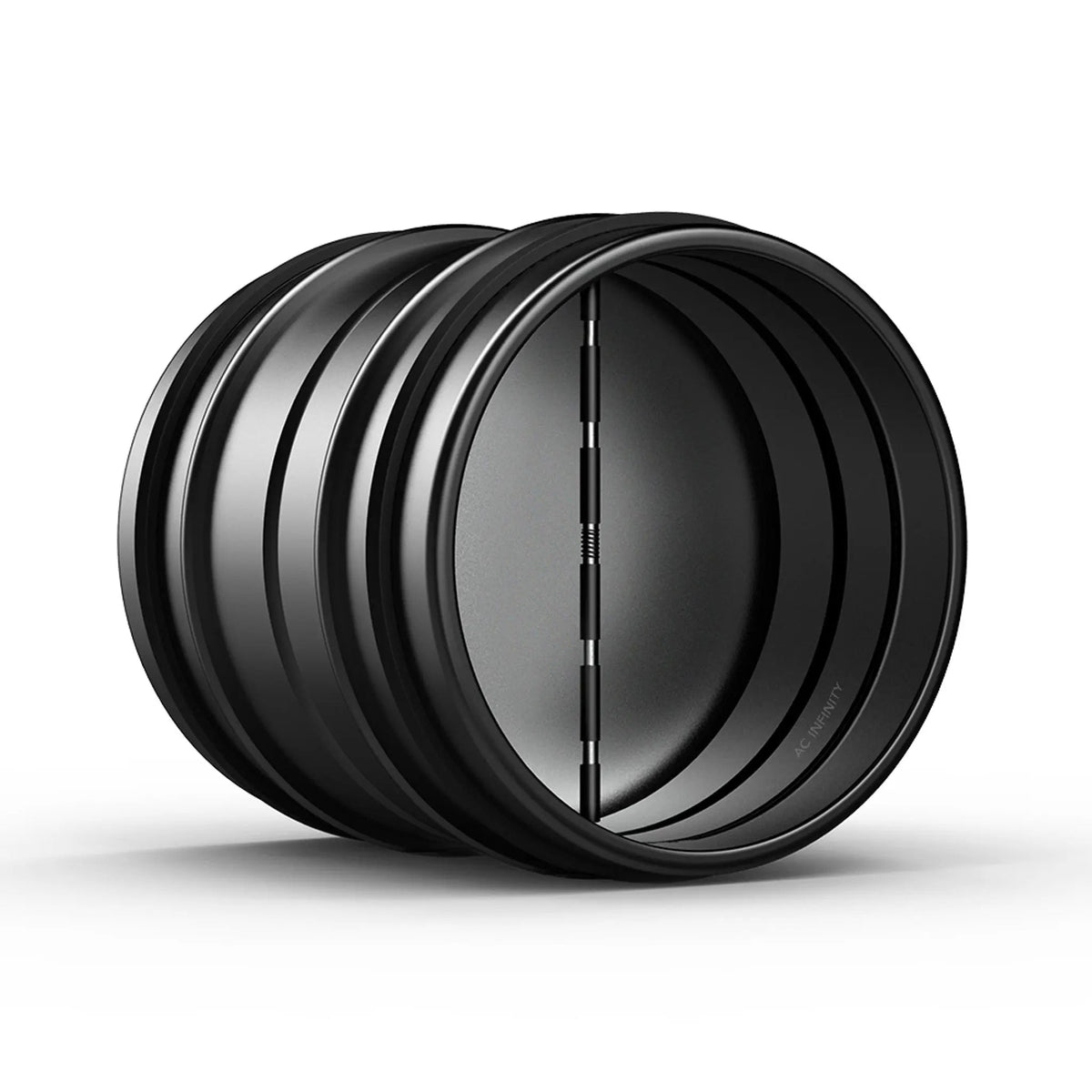

The AC Infinity AC-BDD8-B is a one-way airflow valve designed for installation inside 8-inch flexible or rigid ducting. Its powder-coated galvanised steel body features dual outer rubber gaskets that grip duct walls to create a snug, airtight friction seal.

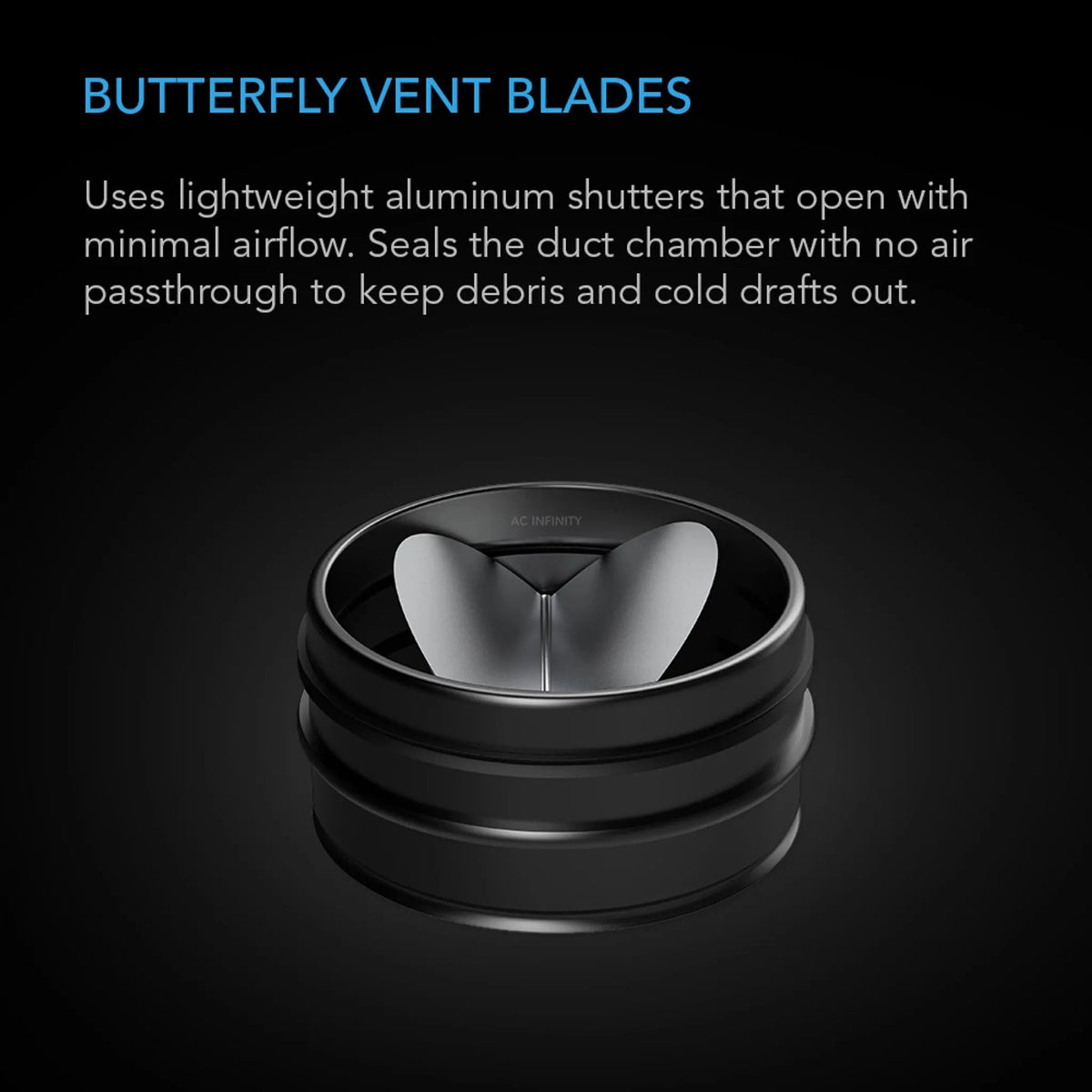

Inside the 7.08-inch steel body, lightweight aluminium butterfly blades are supported by a spring-loaded hinge mechanism. The blades open with minimal static pressure from high-volume inline exhaust fans, commercial range hoods or whole-house ventilation systems, then close when airflow stops to help prevent cold-air infiltration and external draft backflow.

Key Features

• High-capacity 8-inch airflow: Suitable for higher-volume ventilation in large grow rooms, 4 × 8 ft tents, commercial kitchens and HVAC main runs.
• Extended 7.08-inch housing: Provides space for the larger spring-loaded butterfly blades.

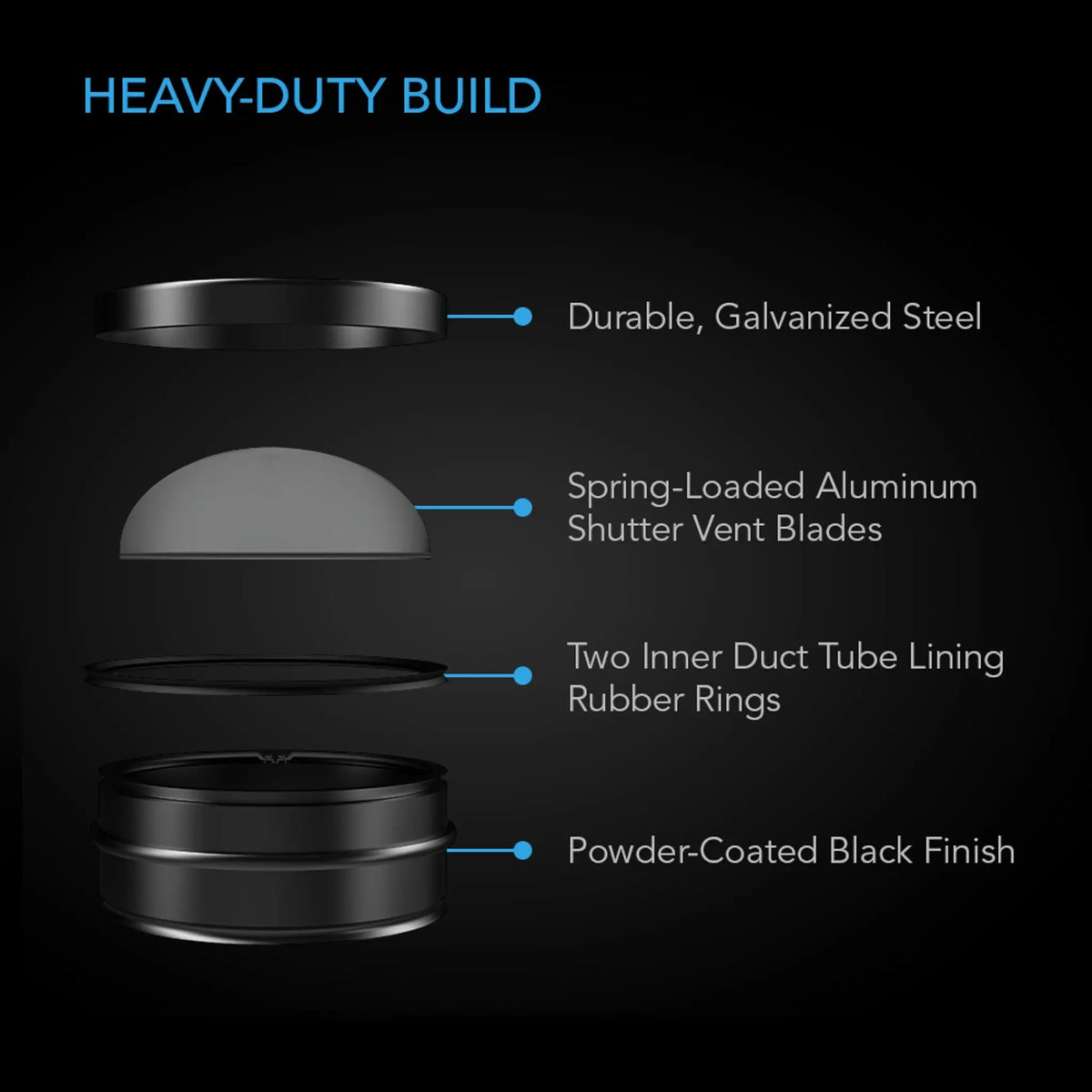

• Galvanised steel body and aluminium blades: Durable metal construction designed to withstand heat, air velocity and continuous moisture.
• Dual outer rubber gaskets: Help hold the damper securely inside 8-inch rigid or flexible ducting without external screws or metal clamps.
• Horizontal or vertical installation: Suitable for a range of duct layouts.

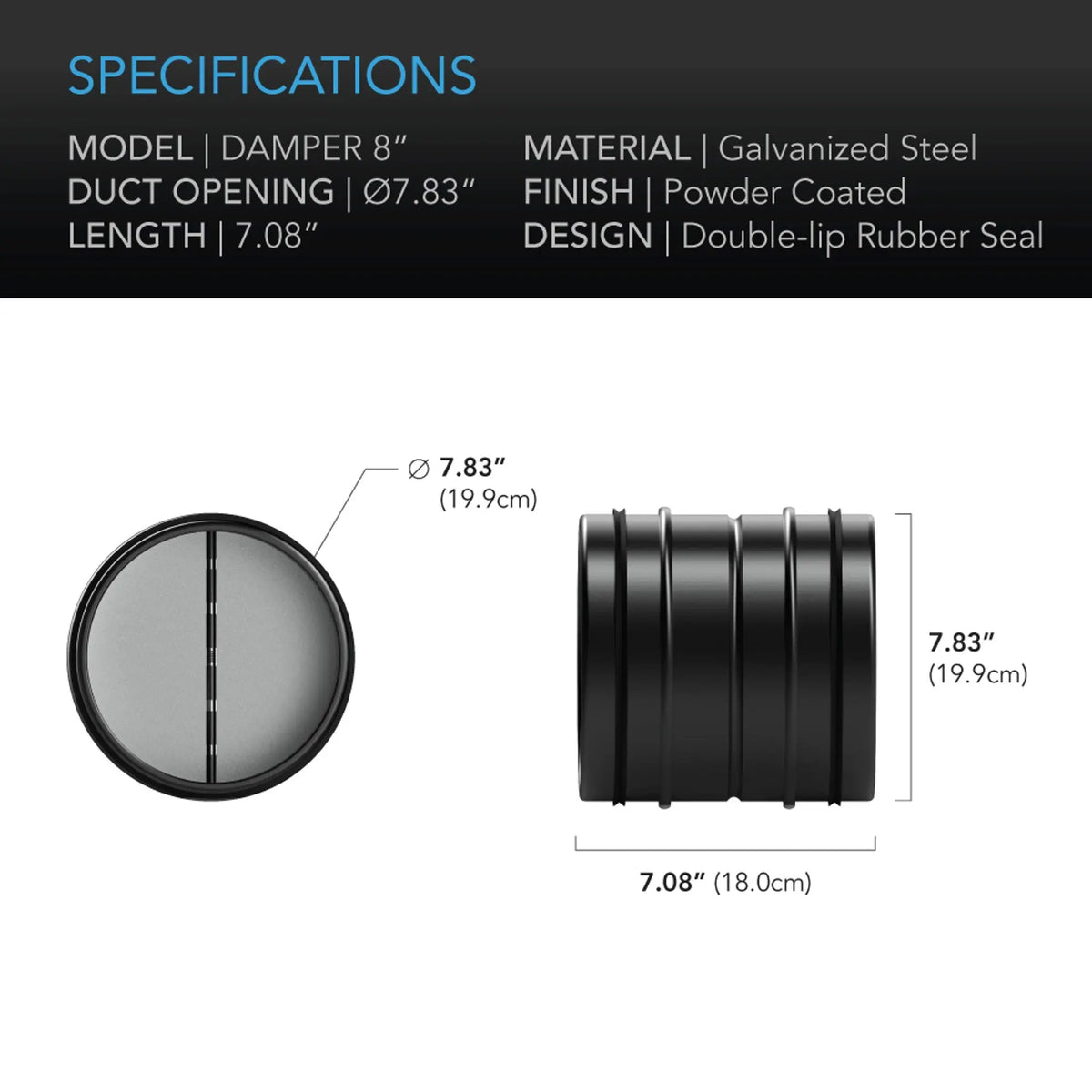

Technical Specifications

Real-World Applications

• Commercial kitchen range hoods and HVAC mains: Helps prevent cold outdoor air from leaking back through large 8-inch exhaust flues and central air lines.
• Large indoor cultivation exhaust lines: Helps reduce odour leakage and outdoor draft backflow through 8-inch grow-room exhaust ports when high-CFM fans cycle off.
• Commercial tumble dryer and utility venting: Helps prevent wind gusts, backdrafts and pests from entering large-capacity dryer ventilation systems.
