AC Infinity CLOUDLINE S10 Quiet Inline Mixed-Flow Duct Fan 10"

Heavy-Duty 10-Inch EC Inline Ventilation Fan with 10-Speed Controller

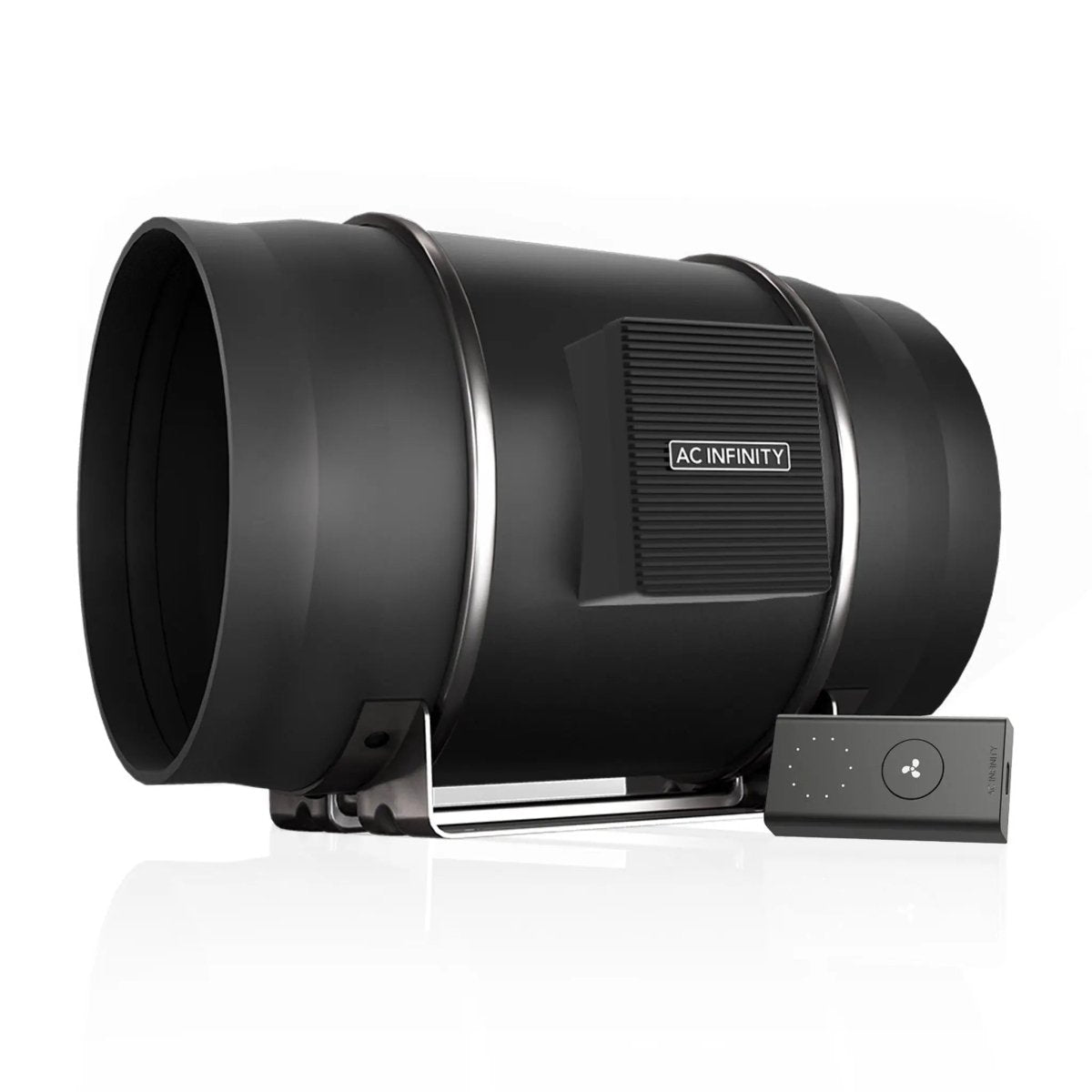

High-volume commercial grow rooms, large multi-tent setups, and extensive duct runs require robust static pressure to pull air through dense carbon filters without sacrificing efficiency. The AC Infinity CLOUDLINE S10 is a heavy-duty 10-inch (250 mm) quiet inline duct fan engineered to move massive air volumes across high-resistance ventilation systems. Delivering an incredible 1201 CFM (2040 m³/h) of airflow, the S10 handles heavy filtration loads with ease while drawing an average of just 136 Watts.

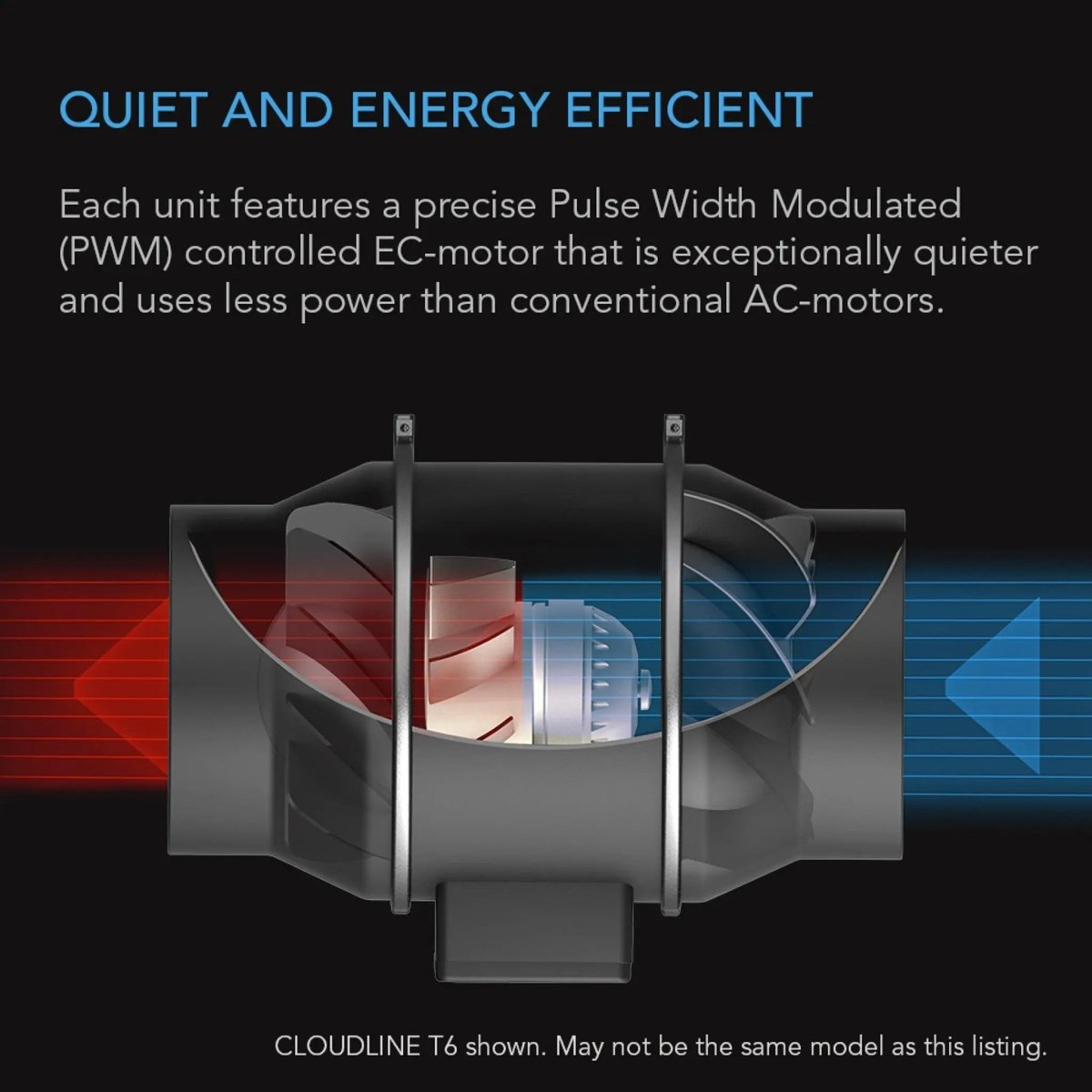

Built with a state-of-the-art PWM-controlled EC motor and a mixed-flow impeller, the S10 operates at whisper-quiet sound levels (48 dBA) compared to traditional AC duct fans. Its dual hydrodynamic wind circles and stator blades push air efficiently through complex duct bends and long runs. The included wired 10-speed controller lets you dial in exact RPM and airflow rates, while native UIS™ compatibility allows you to plug directly into smart controllers like the CONTROLLER 69 PRO for app-based climate automation.

What Makes It Stand Out

• Heavy-Duty 1201 CFM Airflow: Moves massive air volumes (2040 m³/h) to maintain optimal temperature, humidity, and fresh CO2 exchange in large cultivation spaces.
• Whisper-Quiet 48 dBA EC Motor: Digital PWM control eliminates hum and motor whine, allowing smooth operation even at ultra-low speeds.
• High Static Pressure Mixed-Flow Design: Features stator blades and dual wind circles engineered to force air through long duct runs, silencers, and thick carbon filters (1059 Pa max pressure).

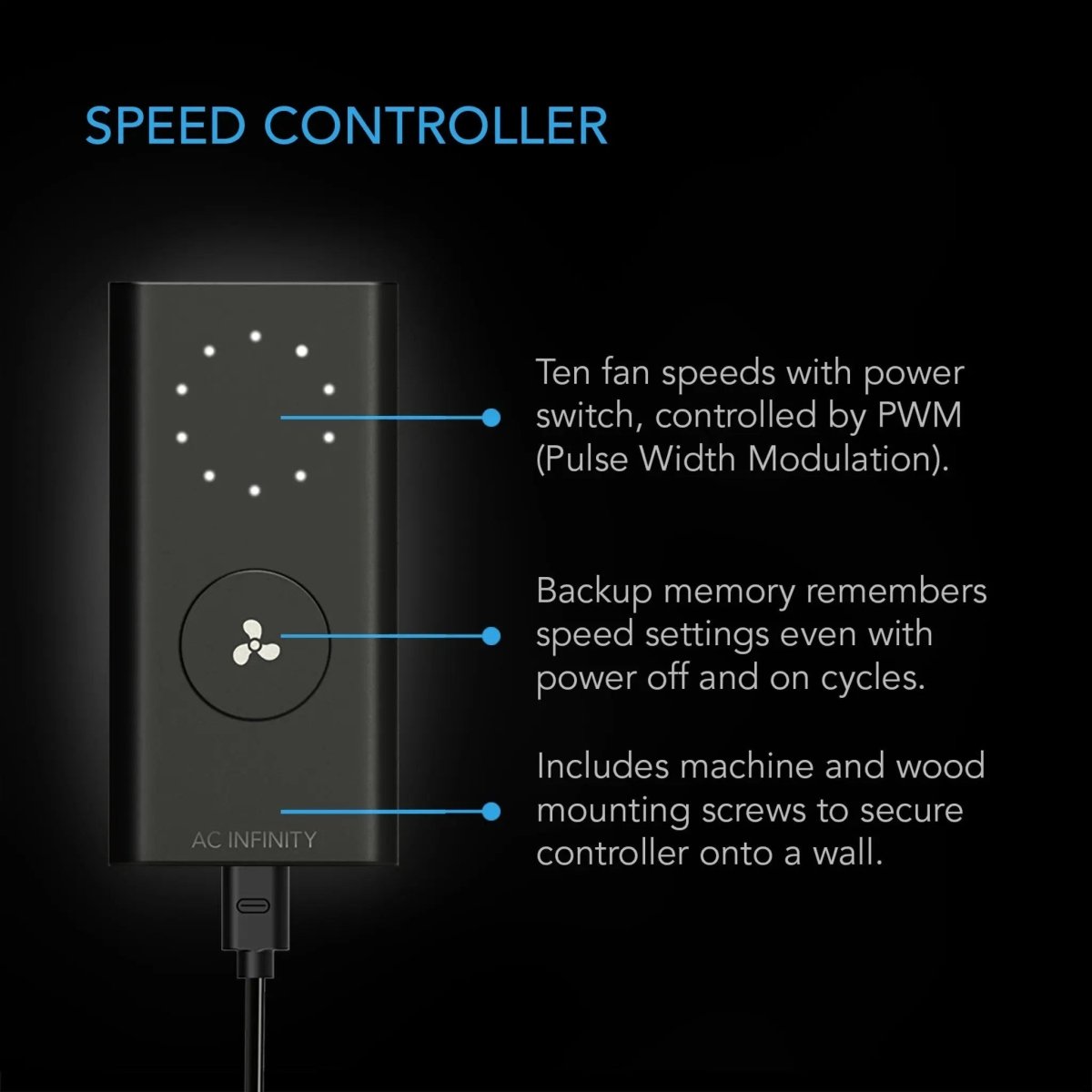

• 10-Speed Wired Controller: Precise speed setting with backup memory that restores your fan speed automatically following power interruptions.

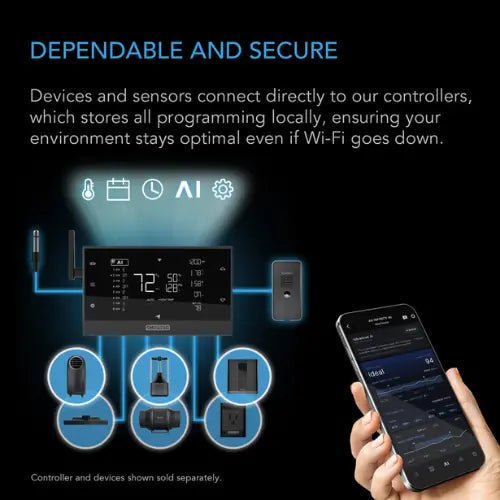

• UIS™ Platform Integration: Fully compatible with AC Infinity smart controllers for automated temp/humidity/VPD triggers, scheduling, and Wi-Fi app tracking.
• Easy-Clean Removable Motor Box: The central motor and impeller assembly detaches easily from the mounted duct housing for fast, hassle-free maintenance without taking down your ducting.
• 67,000-Hour Industrial Life Expectancy: IP44-rated against moisture and dust, featuring dual ball bearings that allow mounting in any horizontal or vertical orientation.

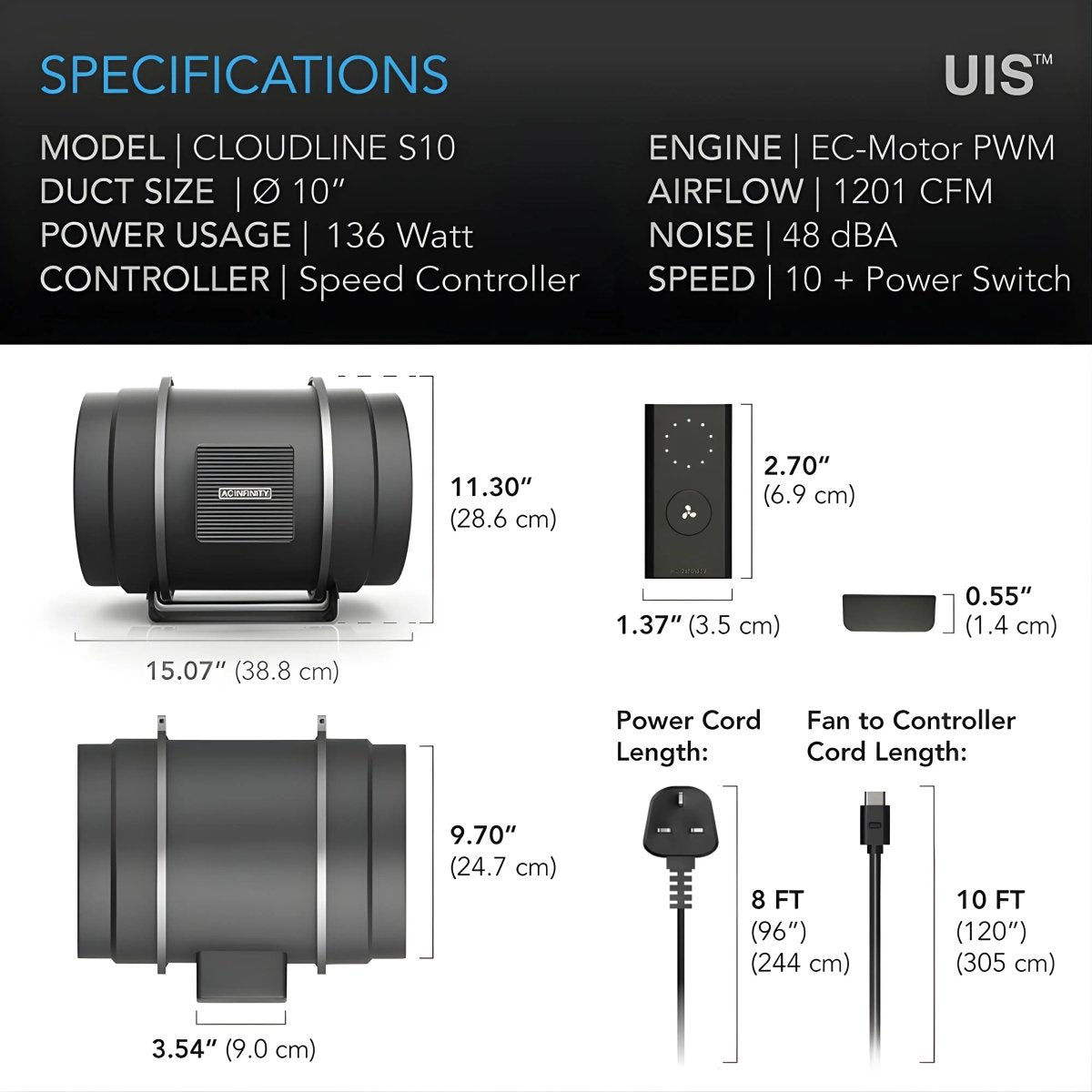

Technical Specifications

Real-World Applications

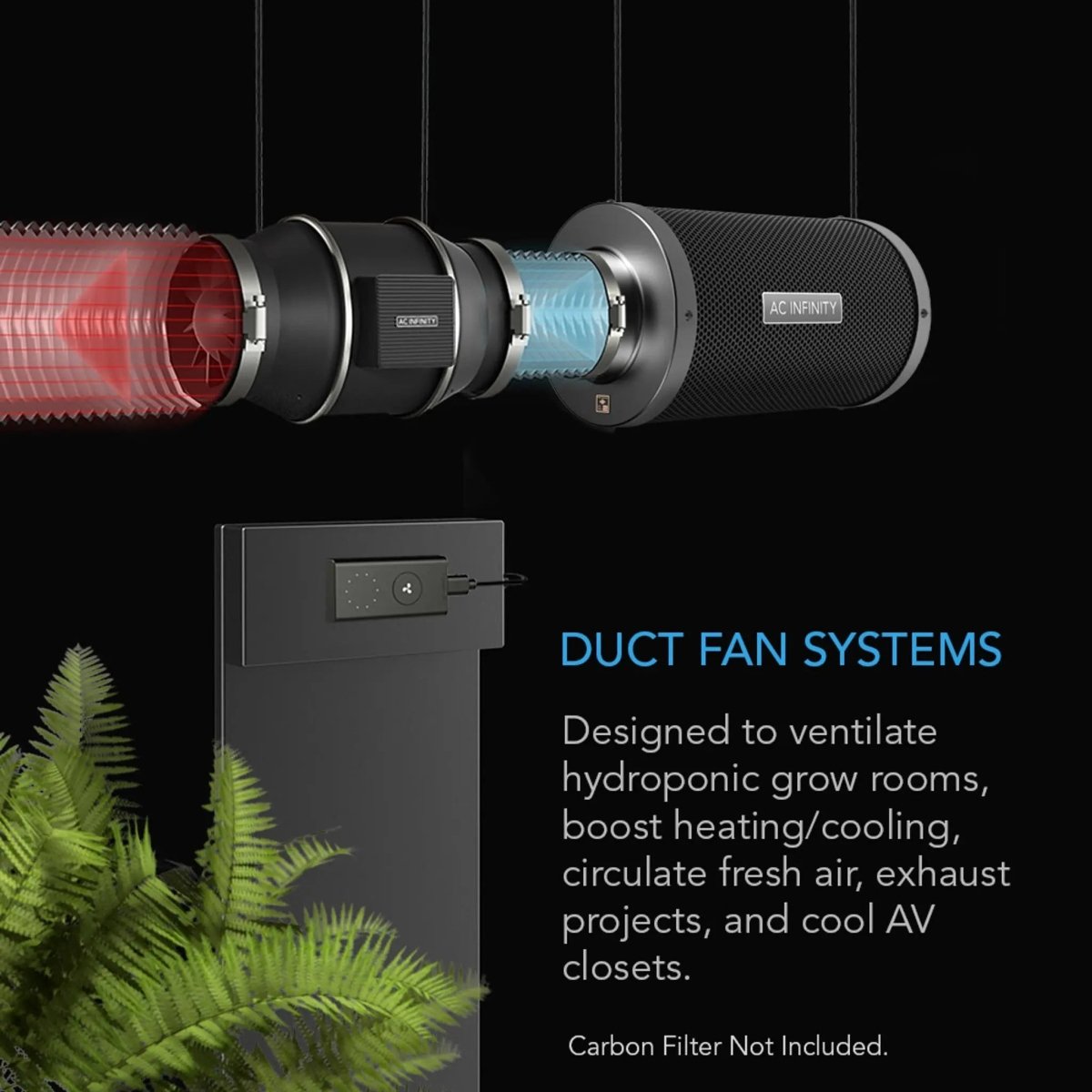

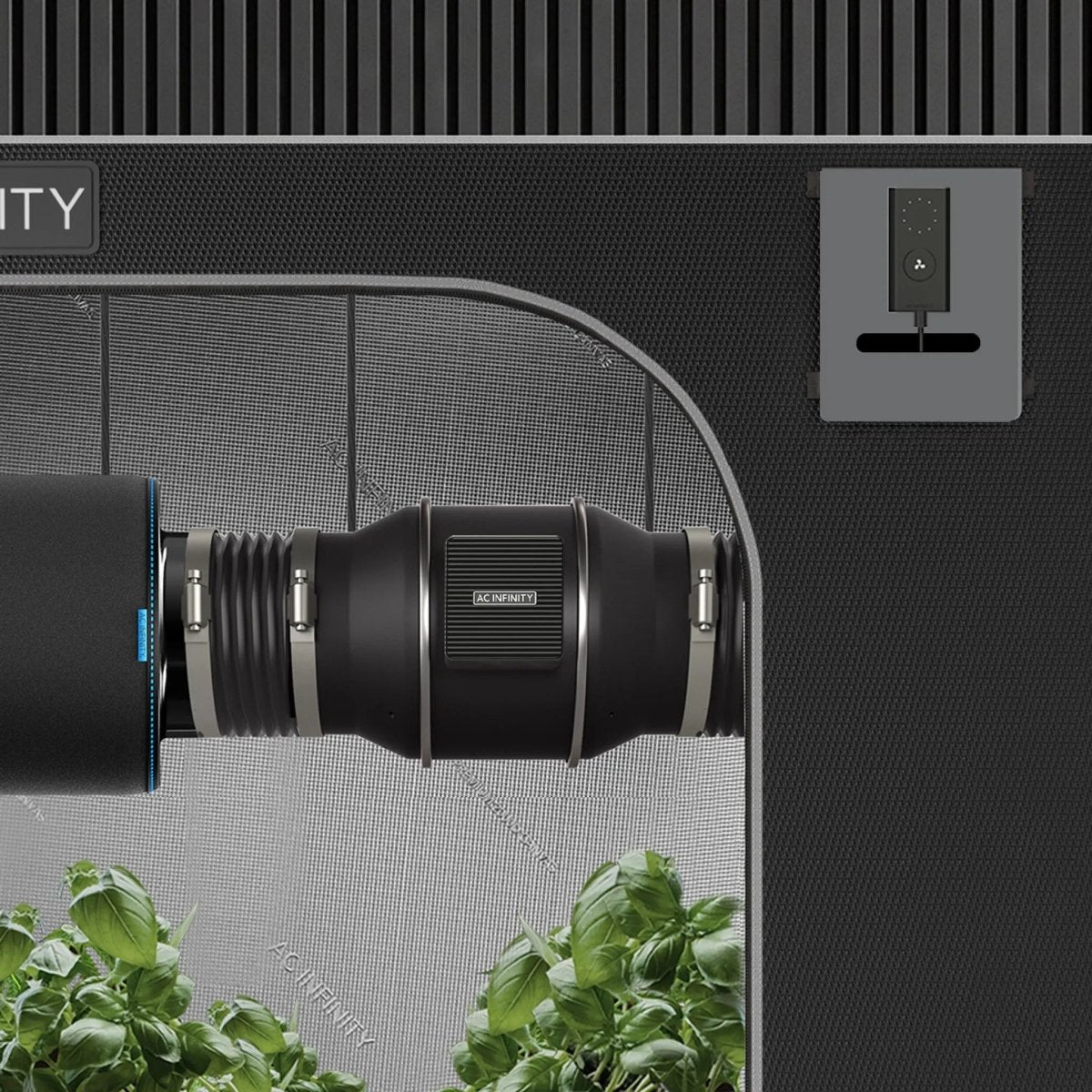

• Large Commercial Grow Rooms & Tents: Primary exhaust fan for grow spaces 8×8 ft up to 10×10 ft requiring continuous carbon filtration.
• HVAC & Room-to-Room Transfer: Pushes heated or cooled air through long insulated ducting runs between rooms or floor levels.
• AV Closet & Server Room Cooling: Quietly exhausts high heat loads generated by dense audio/video cabinets and computer racks.
