AC Infinity IONBOARD S33 Full-Spectrum LED Grow Light 260W

Name: AC Infinity IONBOARD S33 Full-Spectrum LED Grow Light 260W
Brand: LED GROW SHOP UK
SKU: AC-IBS33
Price: 269.00 GBP
Availability: InStock

£269.00 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

High-Efficiency Samsung LM301H Diodes (3×3 ft Coverage) with Algorithmically Positioned PAR Mapping & UIS™ Ecosystem Integration

The AC Infinity IONBOARD S33 (AC-IBS33) is a premium 260W full-spectrum LED grow light engineered to maximise crop yield and canopy penetration in 3×3 ft grow tents. Powered by 640 Samsung LM301H horticulture-grade diodes, the light delivers a high efficacy of 2.7 μmol/J and a peak output of 1788 PPFD. Diodes are algorithmically arranged across the unibody aluminium board to eliminate cold spots and provide edge-to-edge PAR distribution.

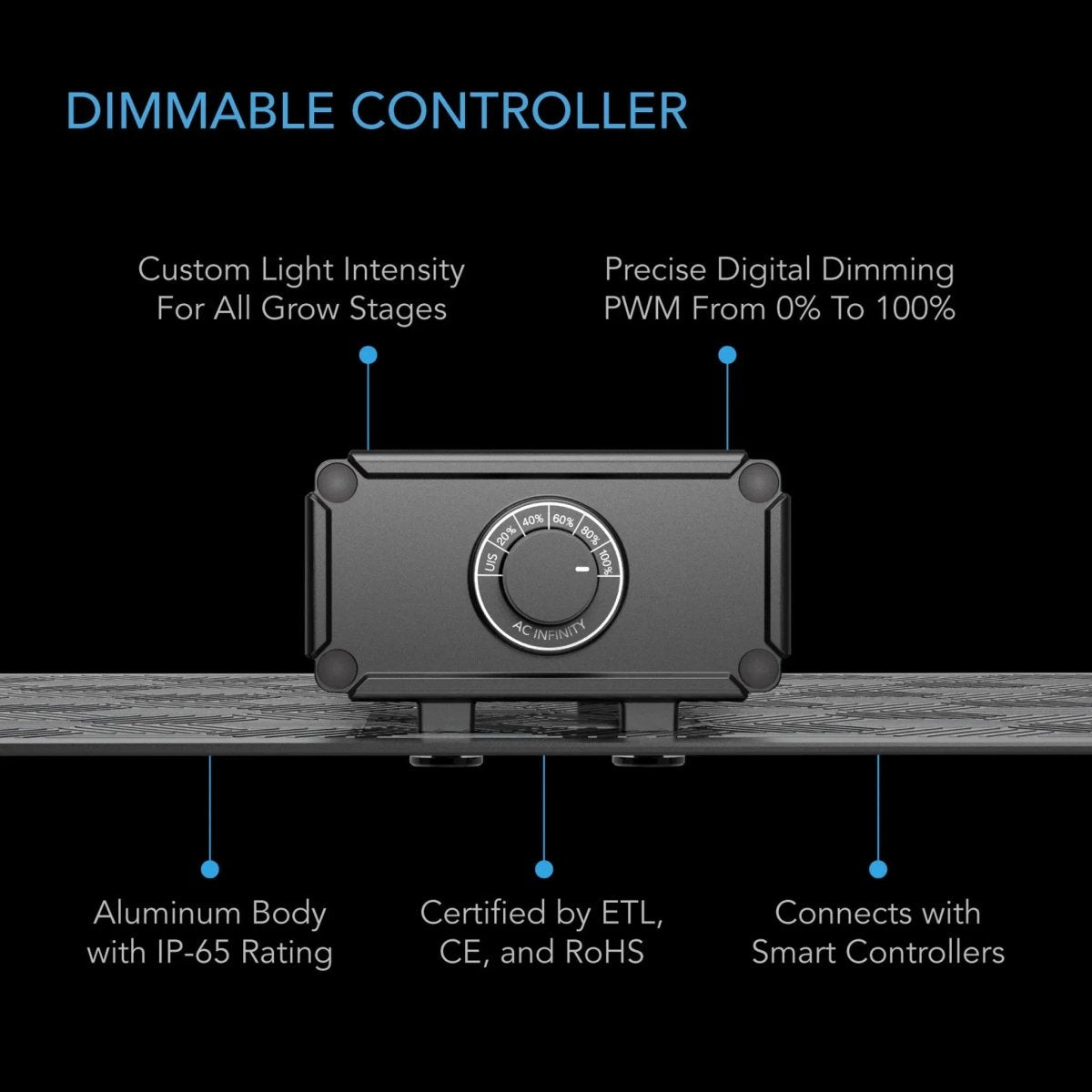

Built on a passive-cooling, fanless aluminium heat sink, the IONBOARD S33 operates completely silently while protecting diode longevity. All components are IP-65 sealed against high humidity, dust, and heat inside closed grow spaces. The included IB-240 driver features a manual 0–100% dimming knob (adjustable in 20% steps) and daisy-chain capability. As part of the AC Infinity UIS™ (Universal Infinity System) platform, it connects directly to smart controllers for automated light cycles, scheduling, and remote mobile app control over Wi-Fi.

Key Features & Benefits

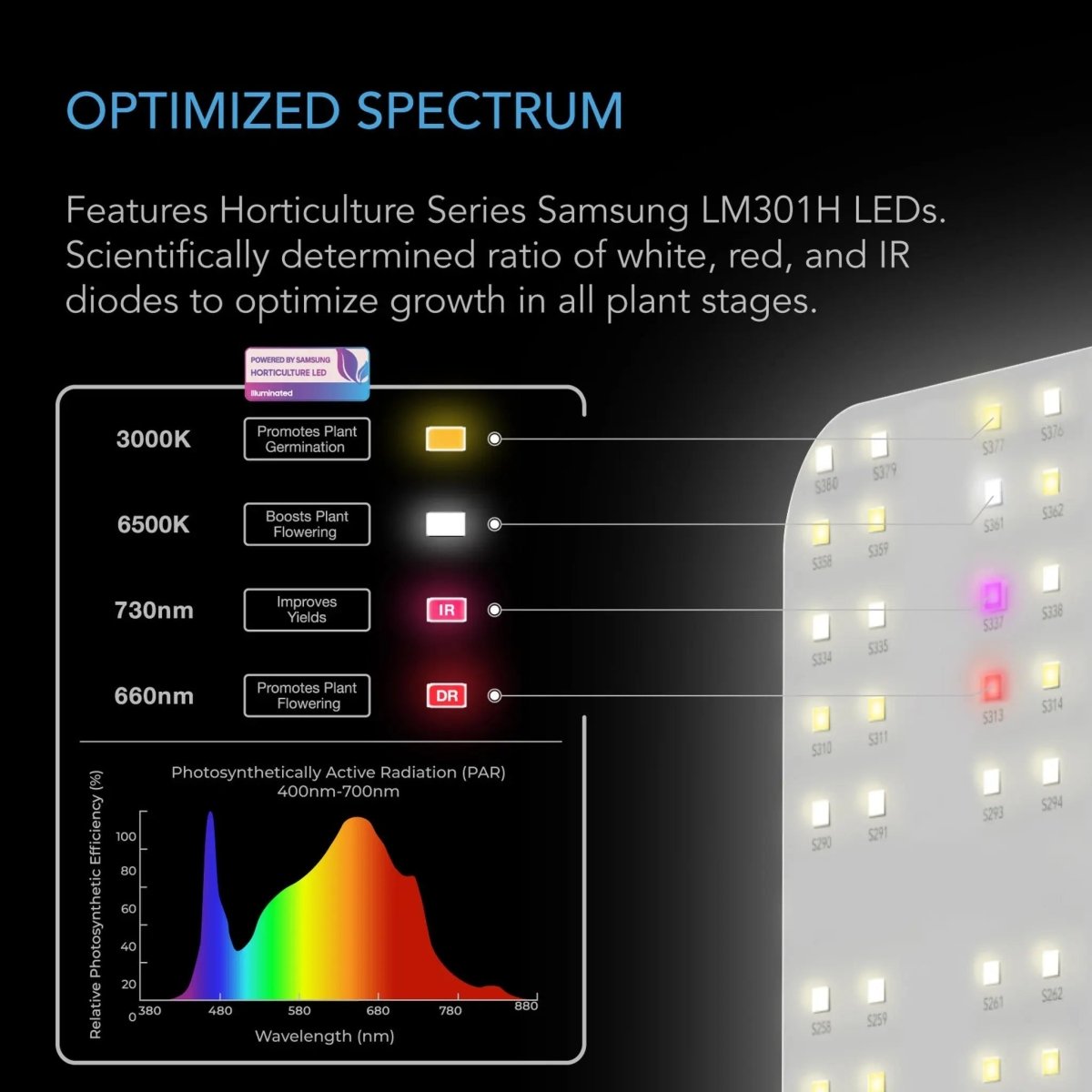

Samsung LM301H LED Diodes: Built with 640 premium Samsung white diodes (3000K and 6500K) supplemented with 660nm deep red and 730nm far-red LEDs for complete plant stage coverage.

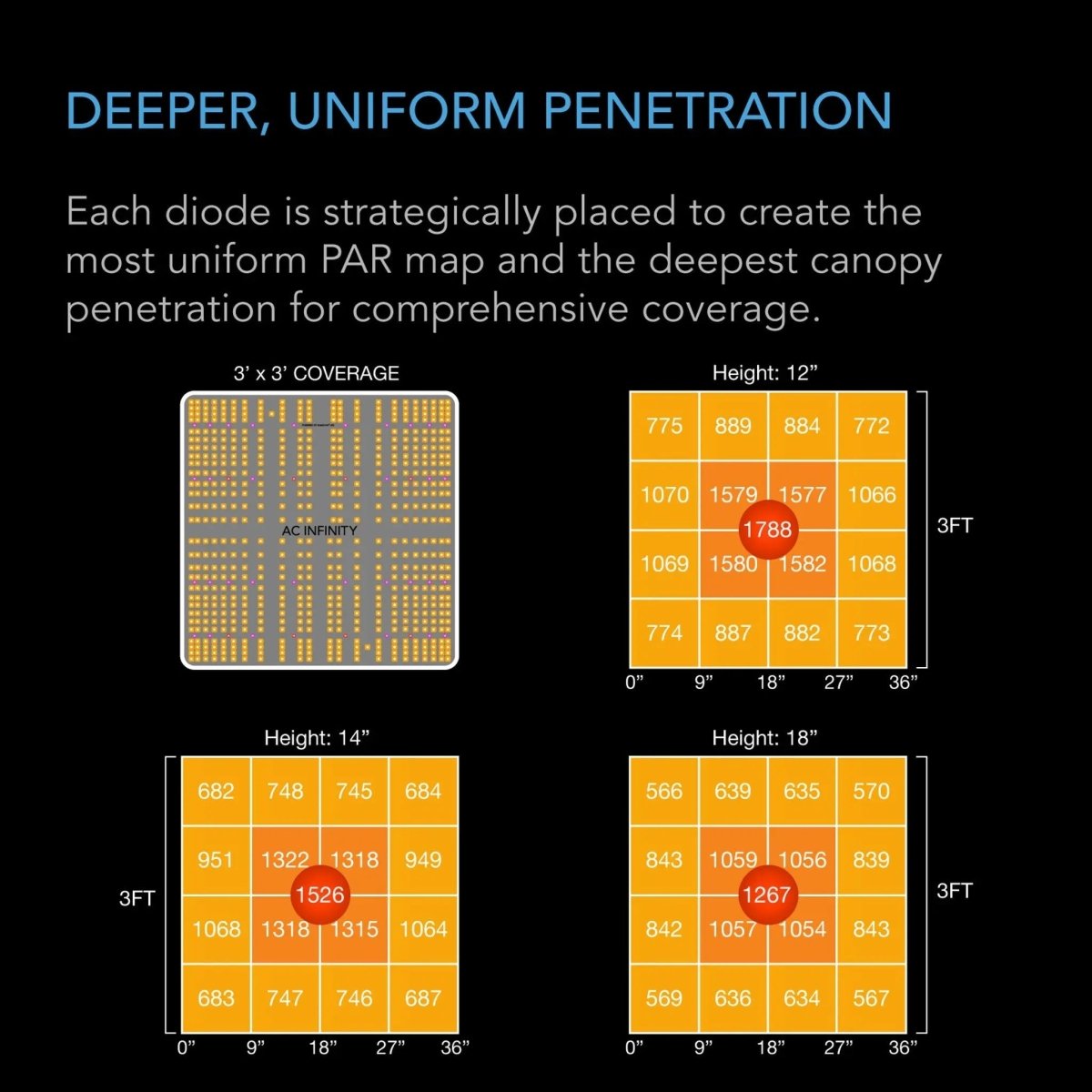

Algorithmically Positioned PAR Map: Diodes are spaced to ensure uniform light coverage across a full 3×3 ft canopy, driving light deeper into lower leaves without scorching central tops.

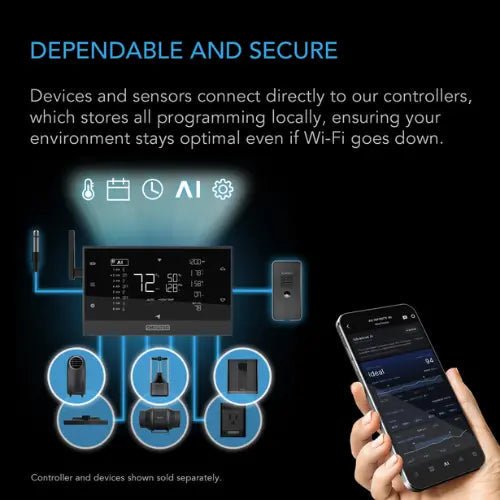

UIS™ Smart Controller Ecosystem: Integrates seamlessly with AC Infinity smart controllers and expansion dongles to enable automated schedules, environmental triggers, and smartphone management.
IP-65 Water & Heat Resistance: Encapsulated electronic board withstands high-humidity grow tent environments (35–85% RH) and operating temperatures up to 140°F.

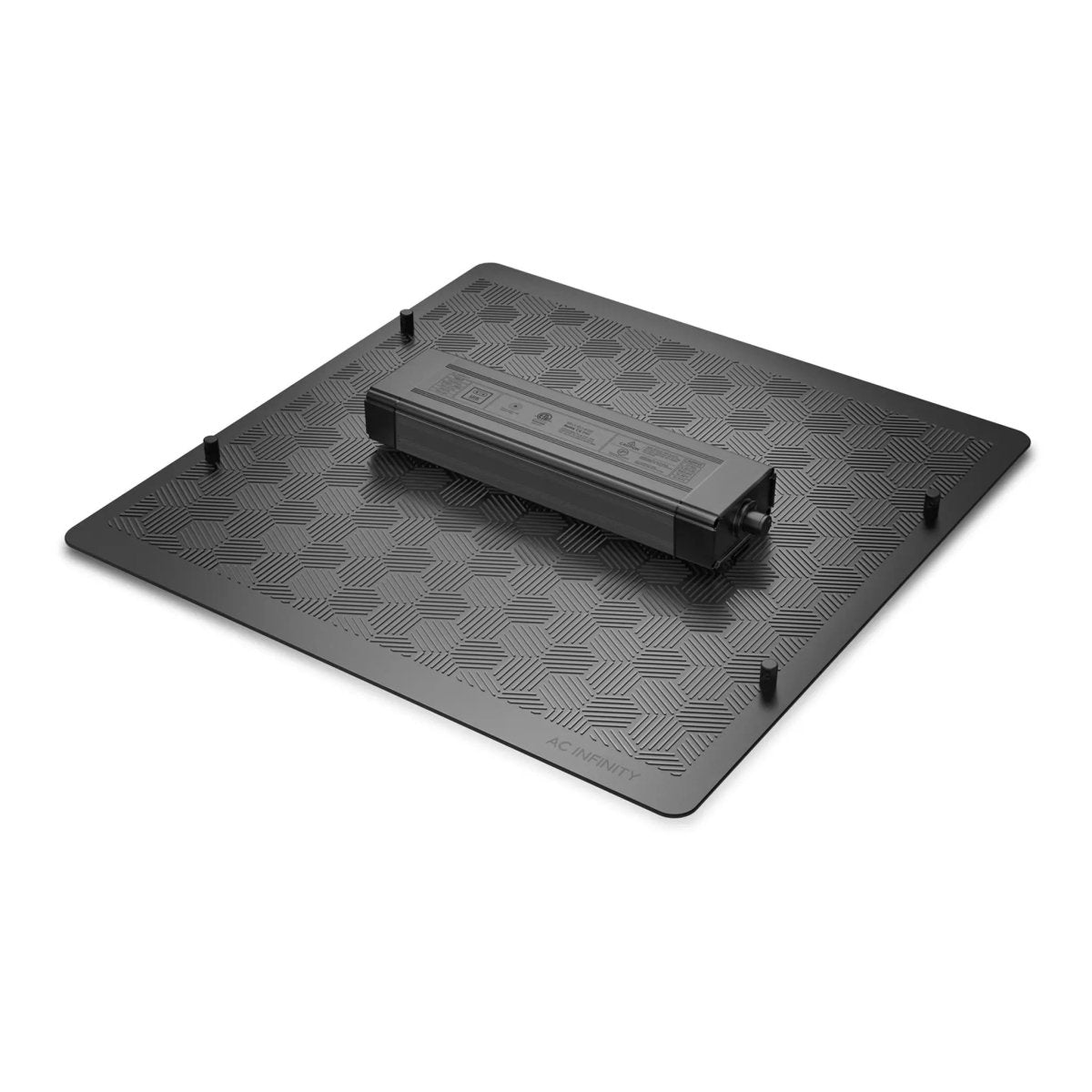

Fanless Unibody Aluminium Heat-sink: Heavy-duty, 0.43-inch aluminium substrate dissipates heat passively without noisy internal fans or moving parts.
Integrated Step-Dimmer Knob: Manual brightness control (0%, 20%, 40%, 60%, 80%, 100%) permits easy output adjustments during seedling, vegetative, and bloom phases.

Technical Specifications

Technical Parameter	Specification
Brand / Manufacturer	AC Infinity Inc.
Product Name / Model	IONBOARD S33 / AC-IBS33

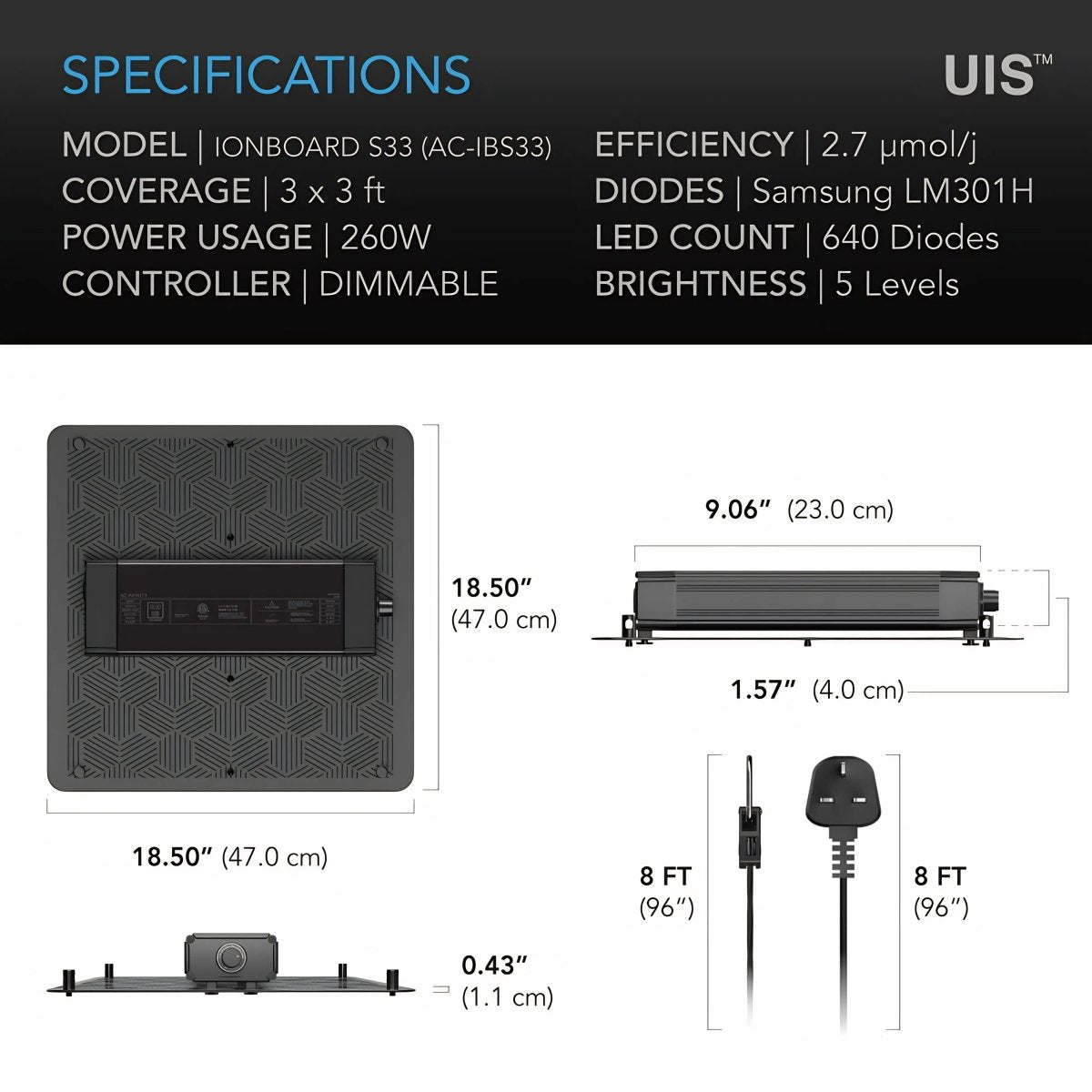

Light Board Dimensions	18.50" × 18.50" × 0.43" (47.0 × 47.0 × 1.1 cm)
Driver Dimensions	9.06" × 1.57" (23.0 × 4.0 cm)
Core Coverage Area	3×3 ft (90×90 cm)
Diode Brand & Count	Samsung LM301H (640 Chips Total)
Light Spectrum	3000K, 6500K White + 660nm Red + 730nm Far-Red
System Efficacy	2.7 μmol/J
Peak PPFD	1788 μmol/m²/s
Power Consumption	260 Watts
Amperage Draw	2.30A @ 120V \| 1.15A @ 240V \| 0.97A @ 277V
Input Voltage / Frequency	100–277V AC \| 50/60 Hz
Power Connector Type	UK 3-Pin Plug
Ingress Protection	IP-65 Waterproof & Dustproof
Diode Lifespan	50,000 Hours
Certifications	ETL Certified (Whole Fixture)
UPC Barcode	819137022539

Real-World Applications

Full-Cycle Indoor Cultivation: Delivers target PAR spectrums optimised for germination, vegetative growth, flowering, and fruiting in 3×3 ft grow tents.

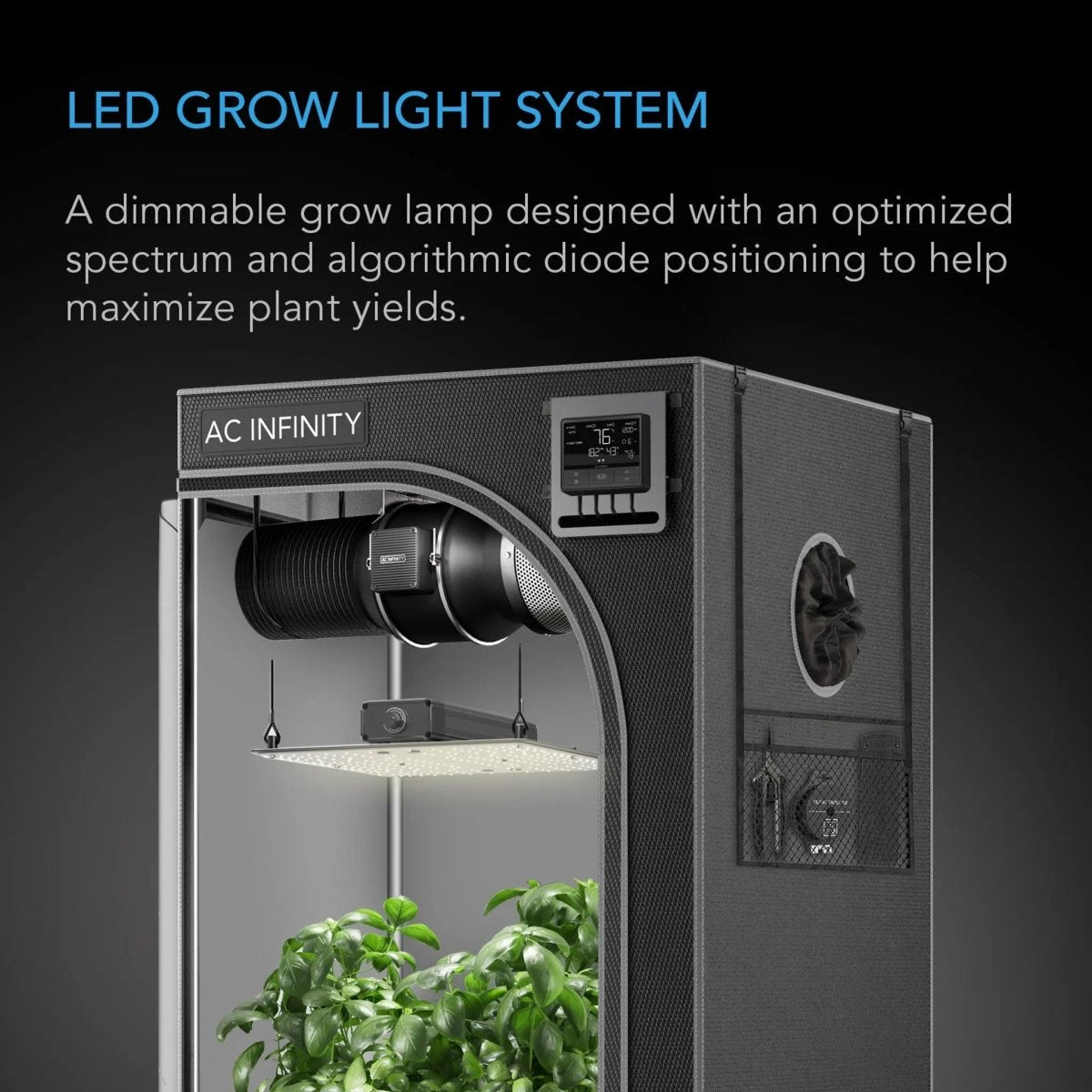

Mylar Tent Setup: Designed specifically for reflective Mylar grow enclosures to capture and bounce side-scattered light back onto lower branches.
Smart Ecosystem Automation: Connects to UIS™ inline exhaust fans and humidity controllers to maintain balanced environment targets.
