AC Infinity IONFRAME EVO10 Commercial Bar-Style LED Grow Light 1000W

Flagship Commercial 5×5 ft to 6×6 ft Coverage with Next-Gen Samsung LM301H EVO Diodes (3.14 μmol/J), 1000W SOSEN Driver & Integrated Sunrise/Sunset Timer (UK Plug Fitted)

The AC Infinity IONFRAME EVO10 (AC-IF10K) is a flagship 1000W bar-style commercial LED grow light custom-engineered for large-scale grow rooms and 5×5 ft flowering footprints (7×7 ft vegetative coverage, stretching up to 6×6 ft maximum flower spread). Equipped with a massive array of 3,710 total LEDs—anchored by genuine Samsung LM301H EVO chips rated at an industry-leading single-diode efficiency of 3.14 μmol/J, the IONFRAME EVO10 outputs an intense peak density of 2146 PPFD while maintaining maximum energy efficiency over legacy LM301B, LM301H, and Bridgelux 3030 chips.

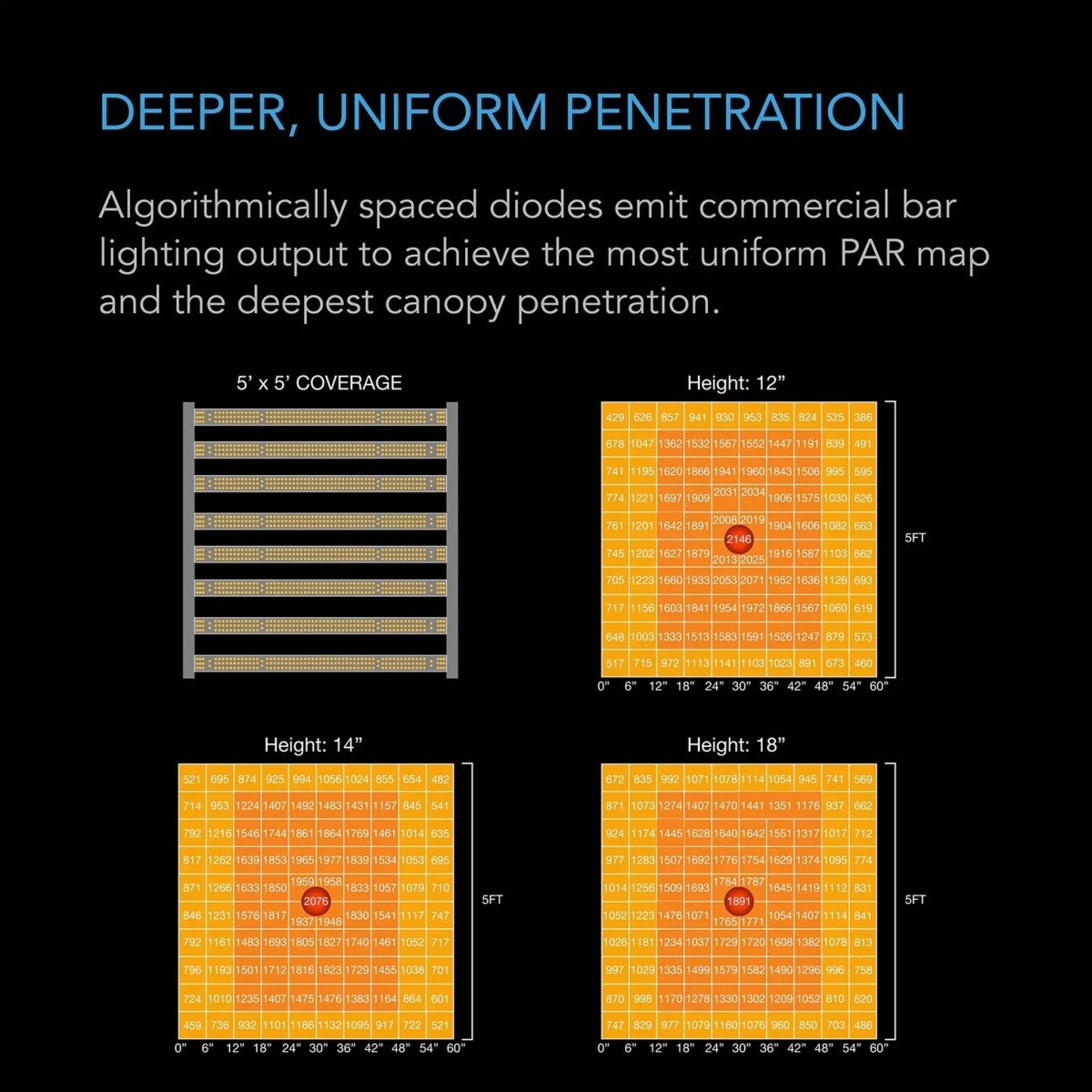

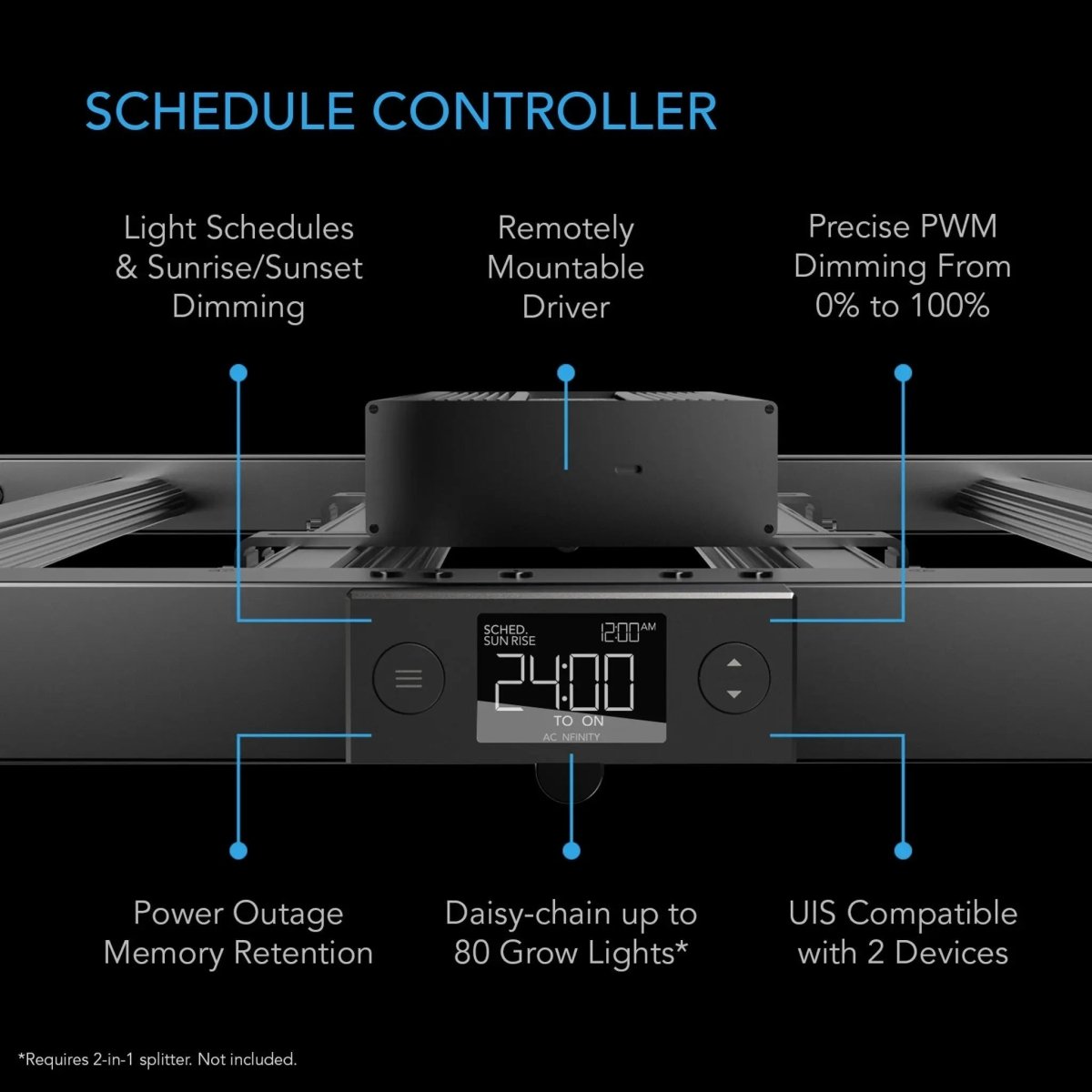

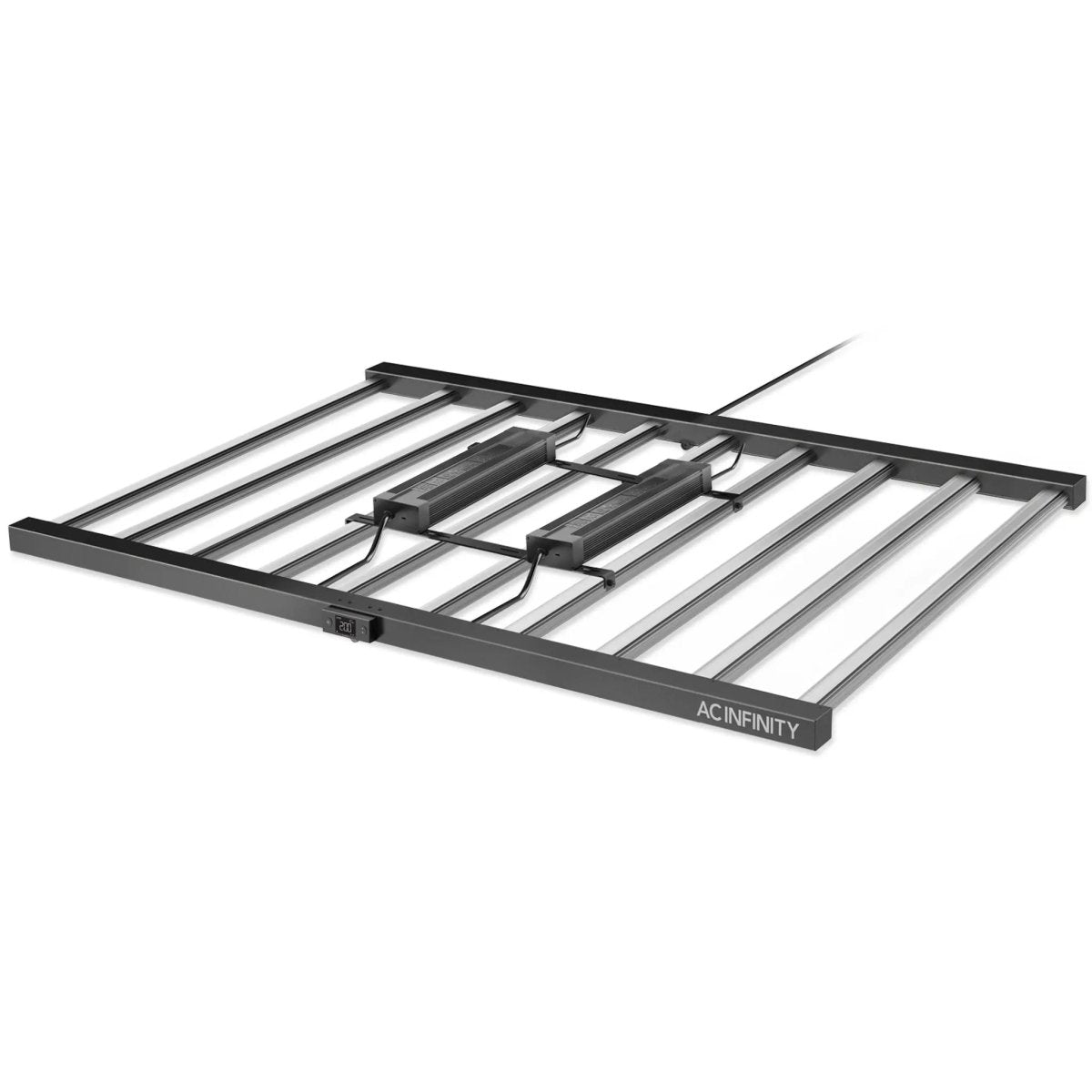

Built on a large square chassis (44.09" × 44.48"), the IONFRAME EVO10 algorithmically spaces its 3,710 diodes along wide parallel light bars to maximise canopy light penetration, eliminate hotspots, and deliver uniform edge-to-edge PAR distribution. To mitigate thermal load in sealed grow environments, the high-capacity SOSEN-1000W driver is fully removable for remote mounting outside the grow space. The included Schedule Controller provides 10 dimming intensity levels, automated cycle scheduling, and a sunrise/sunset mode that mimics natural solar movement. Fully compatible with the UIS™ platform, it links via daisy-chaining (up to 80 lights) or connects to smart controllers like CONTROLLER 69 PRO for complete Wi-Fi app automation.

Key Architectural Differences: IONFRAME EVO10 vs. EVO6 & EVO8

• Maximum Power Output: Delivers 1000 Watts of targeted photon power driven by a commercial SOSEN-1000W driver (drawing 2 × 5.0A), making it the most powerful fixture in the IONFRAME lineup.
• Expanded Commercial Footprint: Engineered to cover 5×5 ft core flowering areas (7×7 ft veg), out-scaling the EVO6 (4×4 ft) and EVO8 (5×5 ft veg / 4×4 ft flower).
• Massive 3,710 Diode Density: Features more than double the diode count of the EVO6 (3,710 vs. 1,680 chips), including 2,360× EVO 3000K, 1,200× EVO 5000K, 10× 395nm UV, 130× OSRAM 660nm deep red, and 10× OSRAM 730nm far-red LEDs.
• ETL Certified Safety: Independently tested and certified to ETL standards (Certificate #5021417) for high-voltage commercial electrical safety.

Key Product Features

• Samsung LM301H EVO Technology: Industry-leading diode efficiency (3.14 μmol/J) delivers an enriched blue spectrum that accelerates vegetative growth and tightens node spacing.

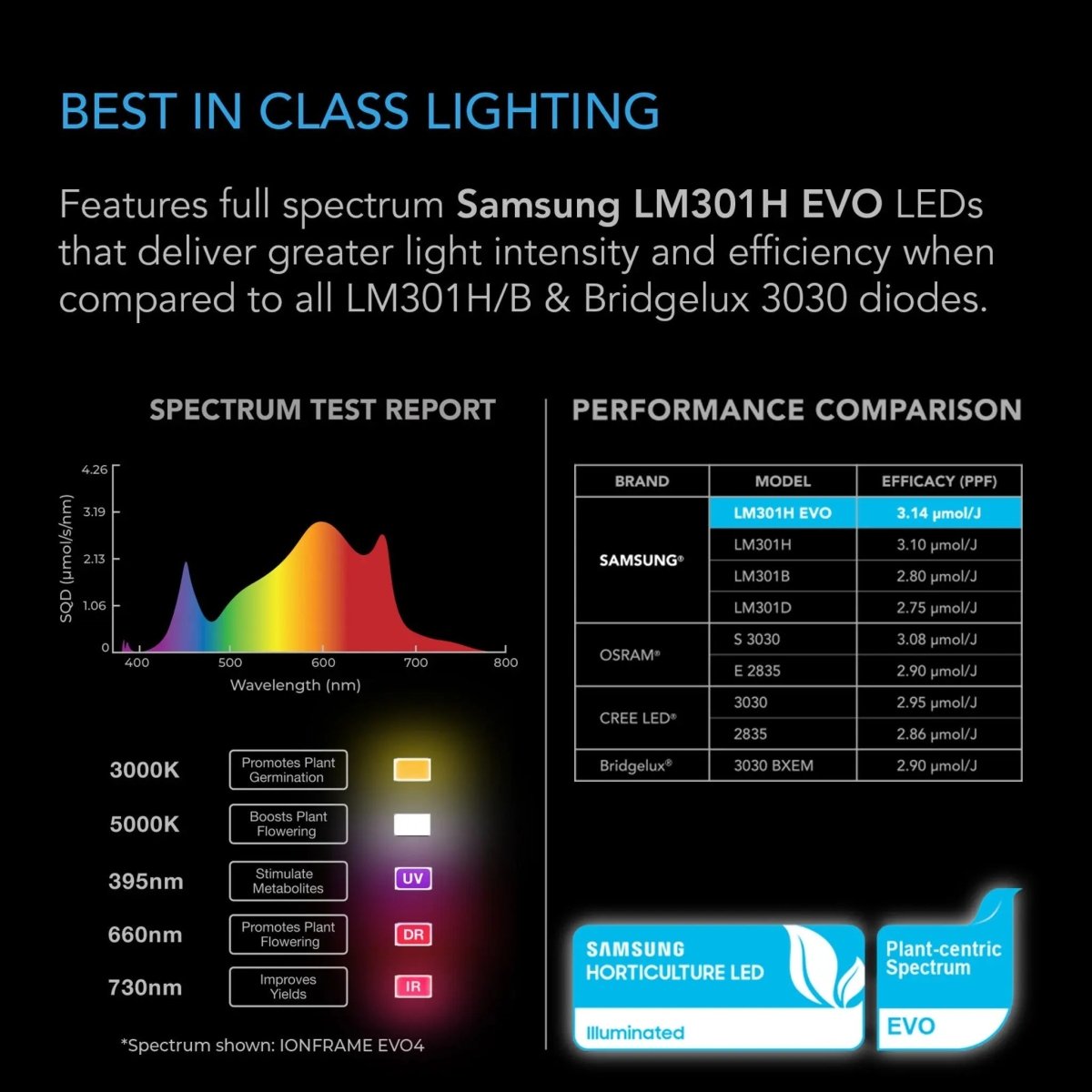

• Full-Spectrum UV-to-Far-Red Array: Blends 3000K and 5000K white diodes with 395nm UV, 660nm deep red, and 730nm far-red OSRAM LEDs to boost terpene, cannabinoid, and flower production.
• Removable SOSEN 1000W Driver: Passively cooled high-wattage power supply detaches easily from the frame for remote placement outside the grow room to reduce thermal stress.
• Smart Sunrise & Sunset Simulation: Onboard schedule controller gradually brightens and dims illumination over custom time-frames to replicate natural dusk and dawn.
• Large-Scale Daisy-Chaining: Supports linear connectivity of up to 80 grow lights using RJ11/RJ12 splitter dongles for centralised multi-fixture management.
• IP-65 Sealed & ETL Certified: Steel and aluminium chassis featuring magnetic mounting options, IP-65 water/dust resistance (35–85% RH), and ETL electrical certification (#5021417).

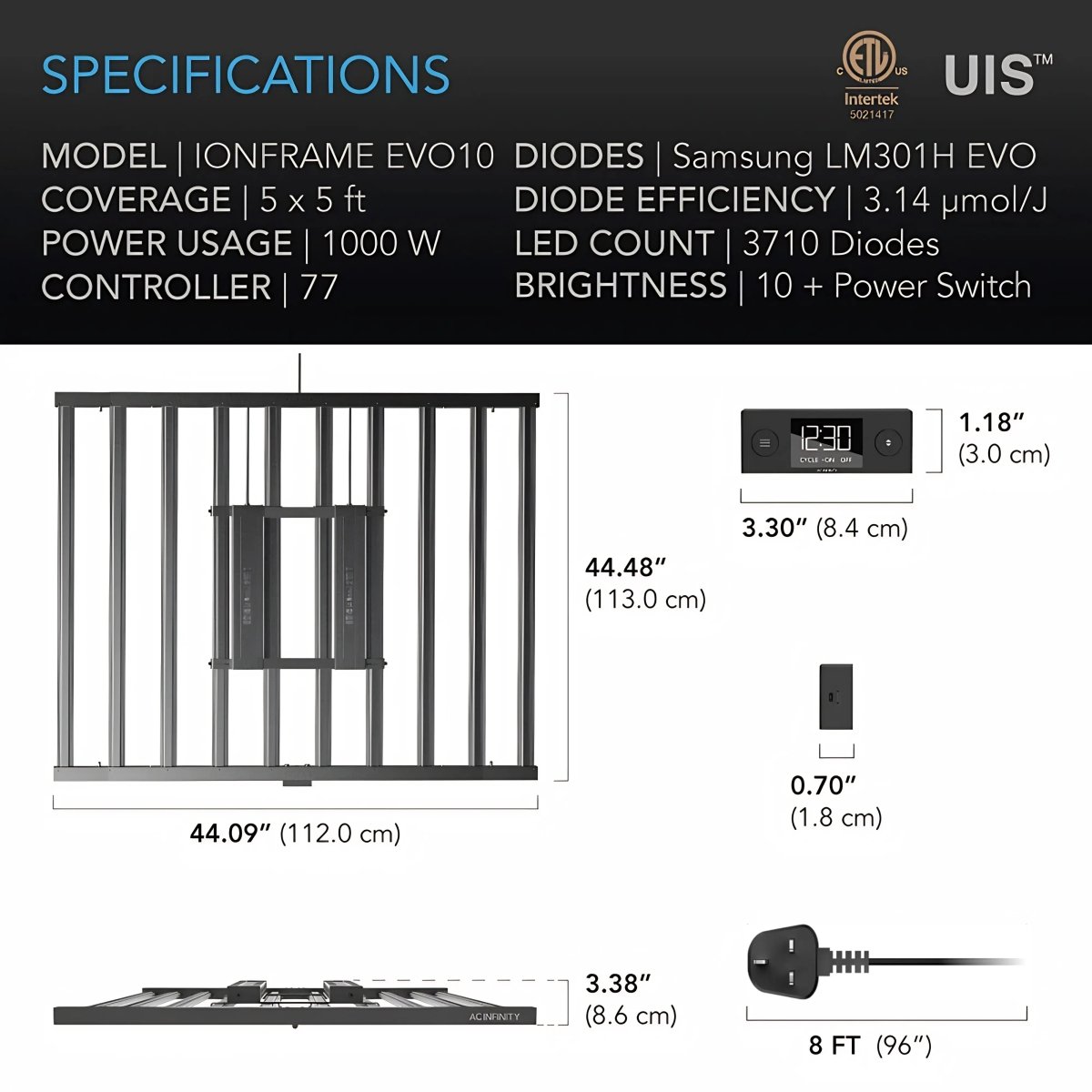

Comprehensive Technical Specifications

Real-World Applications

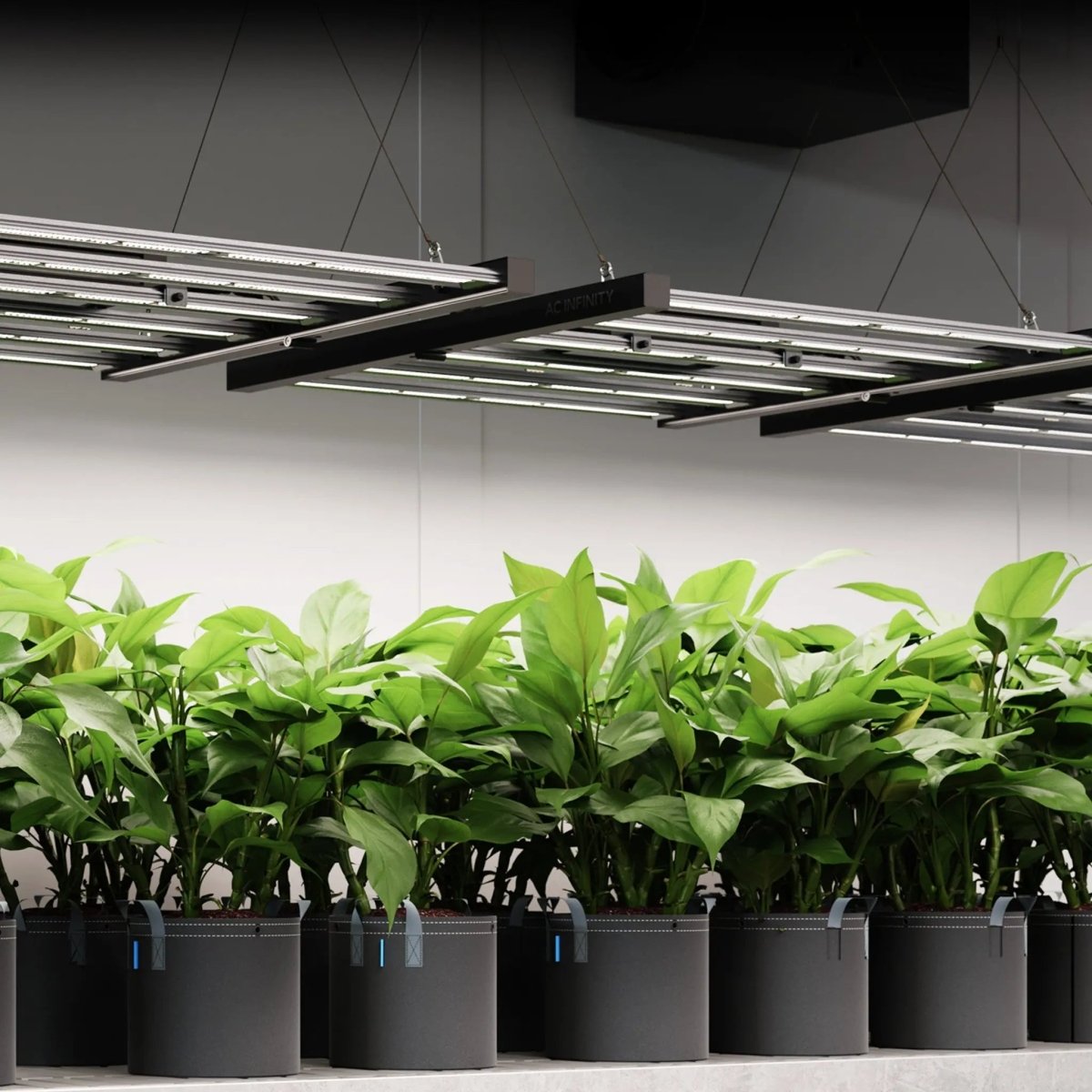

• 5×5 Grow Tent & Open Commercial Rooms: Delivers complete PAR coverage in large 5×5 ft grow tents (such as the AC Infinity CLOUDLAB 855) or open commercial facility tables.
• High-PPFD Canopy Cultivation: Ideal for high-light crops demanding peak intensities (>2000 μmol/m²/s) with supplemental CO₂ enrichment.
• UIS Smart Ecosystem Integration: Direct connectivity with CONTROLLER 69 PRO syncs light schedules and dimming with inline duct fans, clip fans, and humidifiers via the AC Infinity app.
