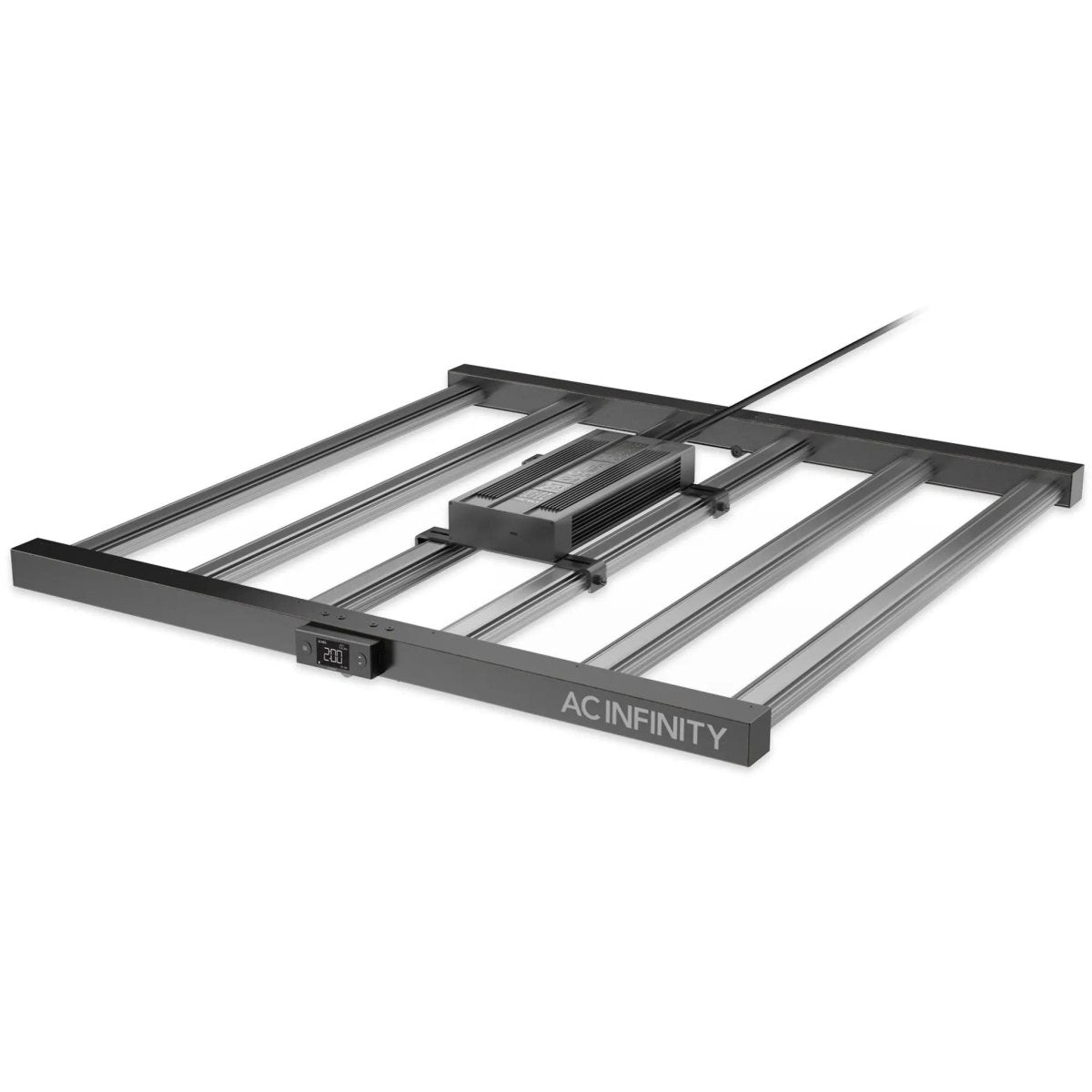

AC Infinity IONFRAME EVO6 Bar-Style Commercial LED Grow Light 500W

Commercial-Grade Samsung LM301H EVO Diodes (3.14 μmol/J) with 4×4 ft Flower Coverage, Removable Driver & Integrated Sunrise/Sunset Timer (UK Plug Fitted)

The AC Infinity IONFRAME EVO6 (AC-IF6K) is a 500W bar-style LED grow light engineered for high-density indoor cultivation in 4×4 ft flowering footprints (5×5 ft vegetative coverage). Built with 1,680 total LEDs led by genuine Samsung LM301H EVO chips achieving an individual diode efficiency of 3.14 μmol/J, the IONFRAME EVO6 yields an intense peak output of 1991 PPFD while maintaining superior energy efficiency over standard LM301H, LM301B, and Bridgelux 3030 chips.

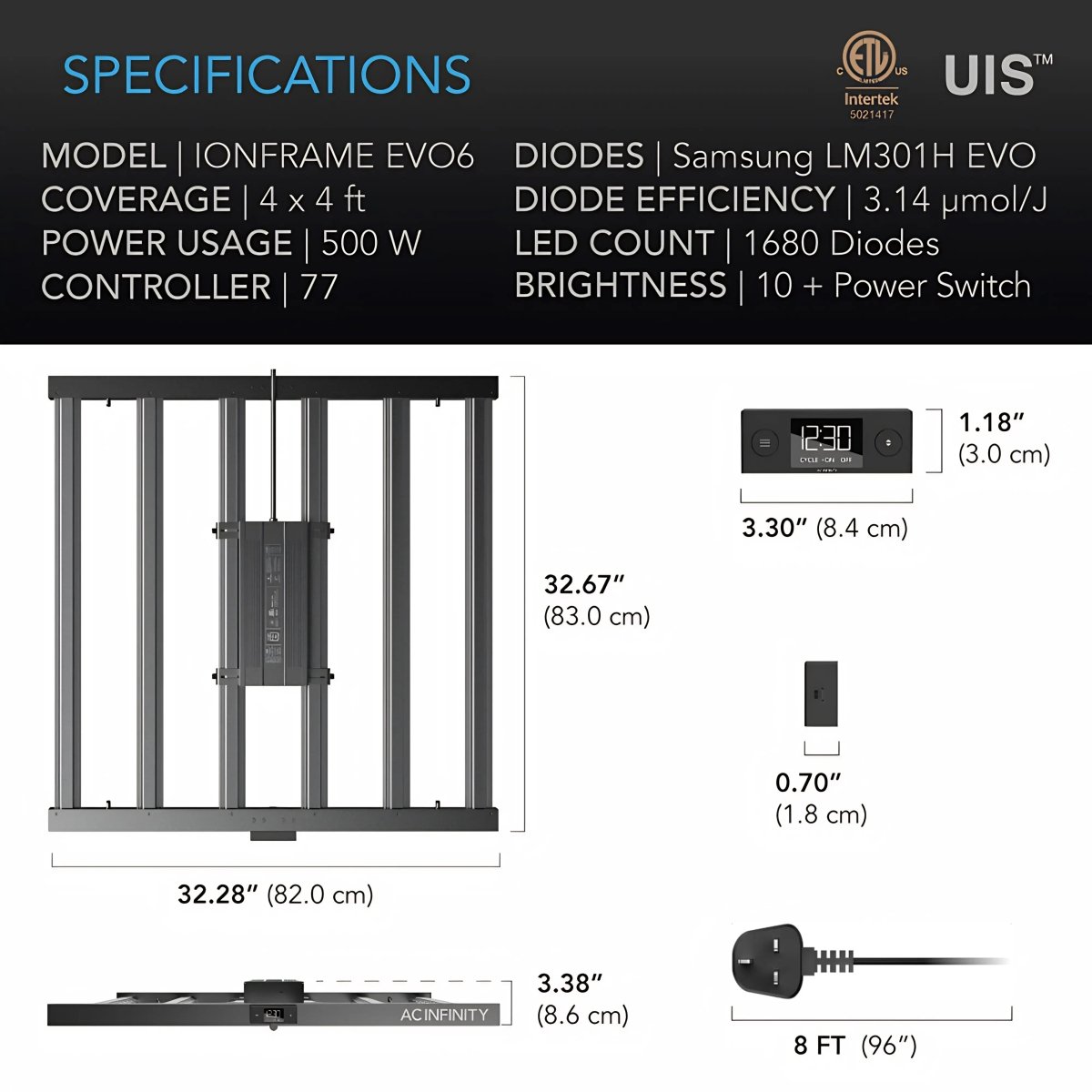

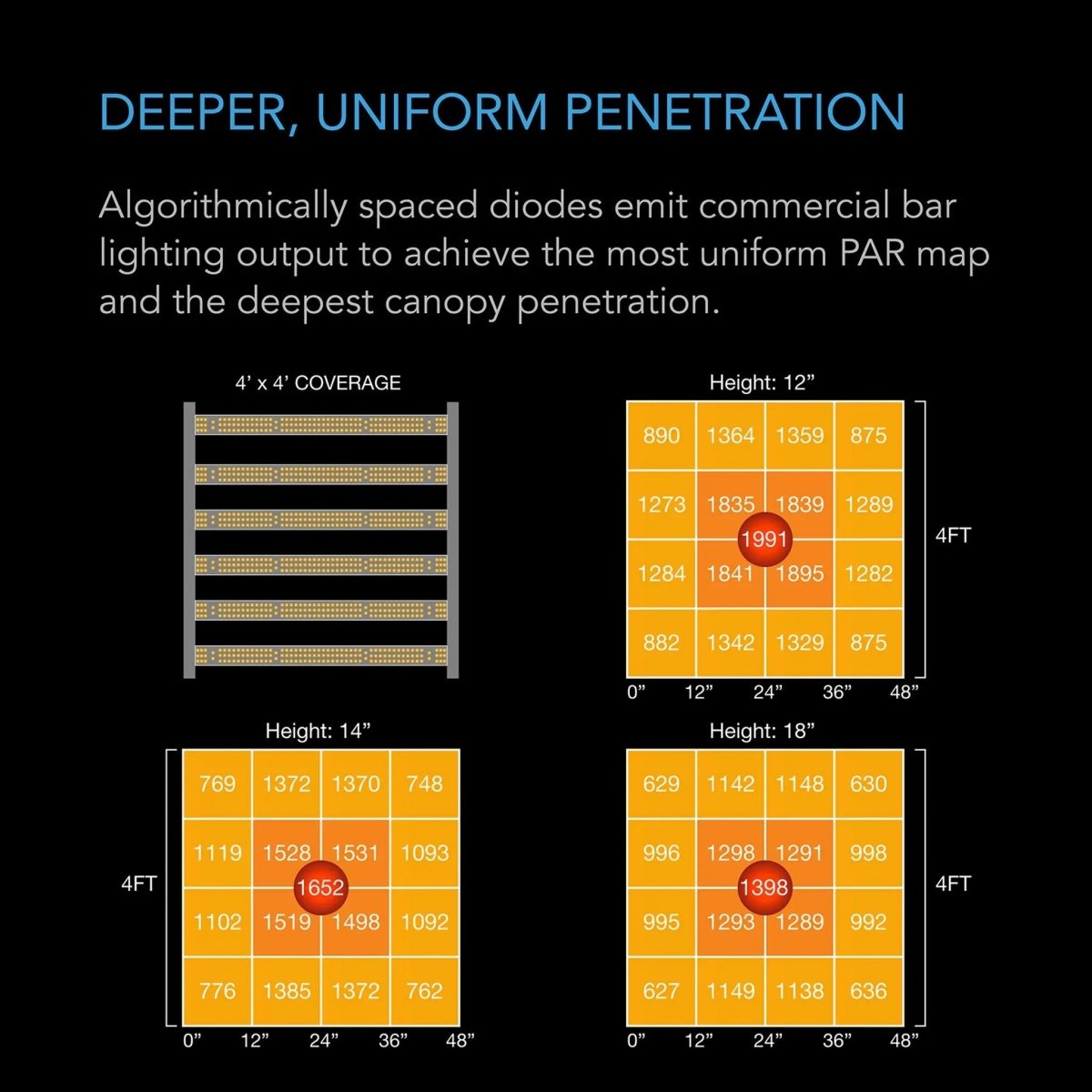

Designed with an optimised square bar configuration (32.28" × 32.67"), the IONFRAME EVO6 algorithmically spaces diodes across its parallel bars to eliminate hot spots and ensure uniform light intensity across your plant canopy. To manage thermal loads effectively, the SOSEN-500W driver can be unmounted from the fixture and installed remotely outside the grow room. The included Schedule Controller provides 10 dimming levels, daily timers, and a gradual sunrise/sunset cycle. As part of the UIS™ ecosystem, it integrates seamlessly with smart controllers for remote Wi-Fi app automation or daisy-chains with up to 80 grow lights.

Key Architectural Differences: IONFRAME EVO6 vs. EVO3 & EVO8

• Targeted 4×4 ft Footprint: Engineered specifically to cover a 4×4 ft flowering space (32.28" × 32.67"), filling the gap between the rectangular EVO3 (2×4 ft) and the larger commercial EVO8 (5×5 ft).
• Balanced 500W Output: Scales power up to 500 Watts with a SOSEN-500W driver, delivering a high peak density of 1991 PPFD tailored for standard 4×4 ft grow tents.
• 1,680 Diode Configuration: Features 1,680 precision-placed LEDs (including 1,074× EVO 3000K, 540× EVO 5000K, 6× 395nm UV, 54× OSRAM 660nm deep red, and 6× OSRAM 730nm far-red chips).
• UK Plug Fitted: Includes a factory UK standard 3-pin mains connector ready for UK and European power setups.

Key Product Features

• Samsung LM301H EVO Technology: Delivers industry-leading diode efficiency (3.14 μmol/J) with an enriched blue spectrum that promotes tighter internodal spacing and vigorous vegetative structure.

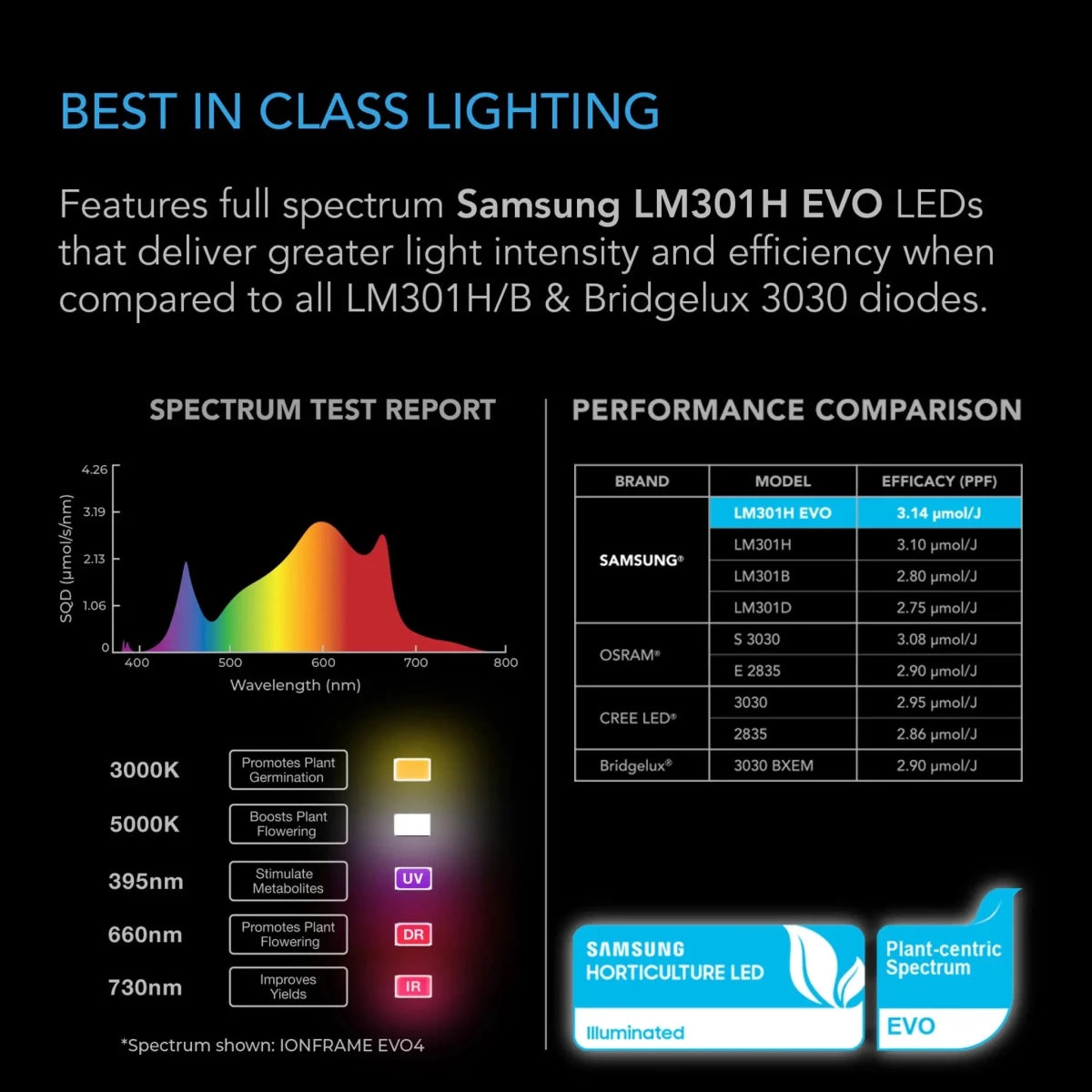

• Full-Spectrum UV-to-Far-Red Array: Combines 3000K and 5000K white diodes with 395nm UV, 660nm deep red, and 730nm far-red OSRAM LEDs to maximise terpene, resin, and flower yields.
• Removable SOSEN Driver: Passively cooled 500W SOSEN power driver detaches easily from the fixture frame for remote mounting outside the grow tent to control heat accumulation.

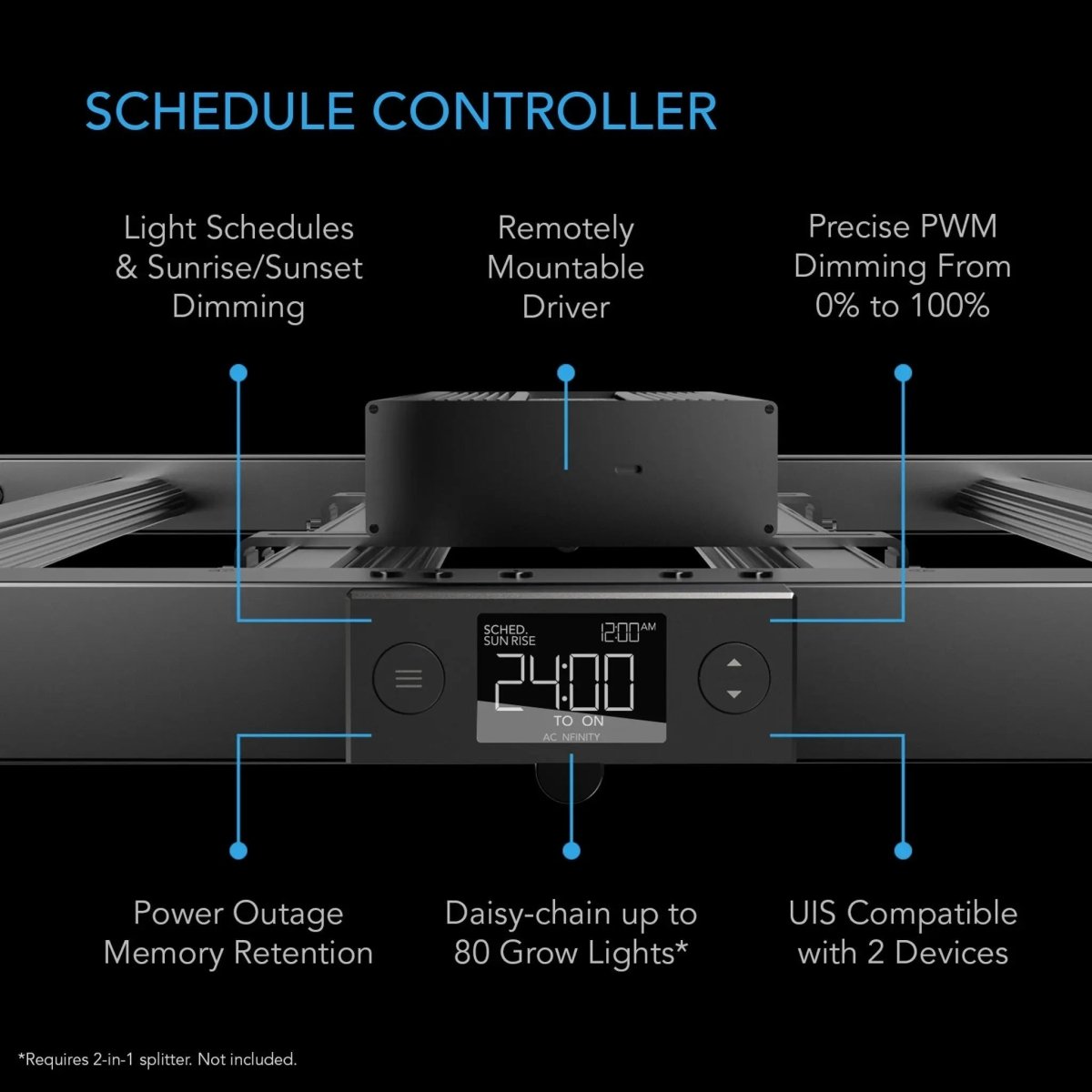

• Smart Sunrise & Sunset Simulation: Onboard schedule controller gradually brightens and dims lighting over custom time-frames to mimic natural solar transitions and reduce plant shock.
• Commercial Scale Daisy-Chaining: Connects up to 80 grow lights in a linear arrangement using RJ11/RJ12 splitter dongles for centralised multi-fixture control.
• IP-65 Sealed Construction: Heavy-duty steel and aluminium frame with magnetic mounting compatibility and sealed electronics to endure high-humidity environments (35–85% RH).

Comprehensive Technical Specifications

Real-World Applications

• 4×4 Grow Tent Cultivation: Provides complete, edge-to-edge PAR coverage in standard 4×4 ft grow tents (e.g., AC Infinity CLOUDLAB 844).
• Thermal Management in Enclosed Rooms: Allows growers to detach the SOSEN driver and mount it outside the tent to prevent heat build-up around plant canopies.

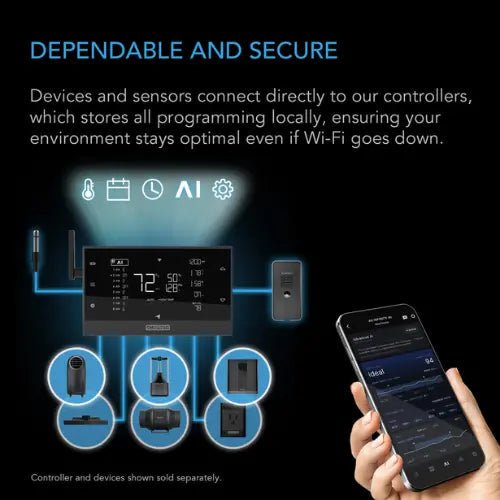

• UIS Platform Automation: Connects directly to CONTROLLER 69 PRO to sync lighting schedules with inline exhaust fan speed, humidity levels, and VPD targets via the AC Infinity app.
