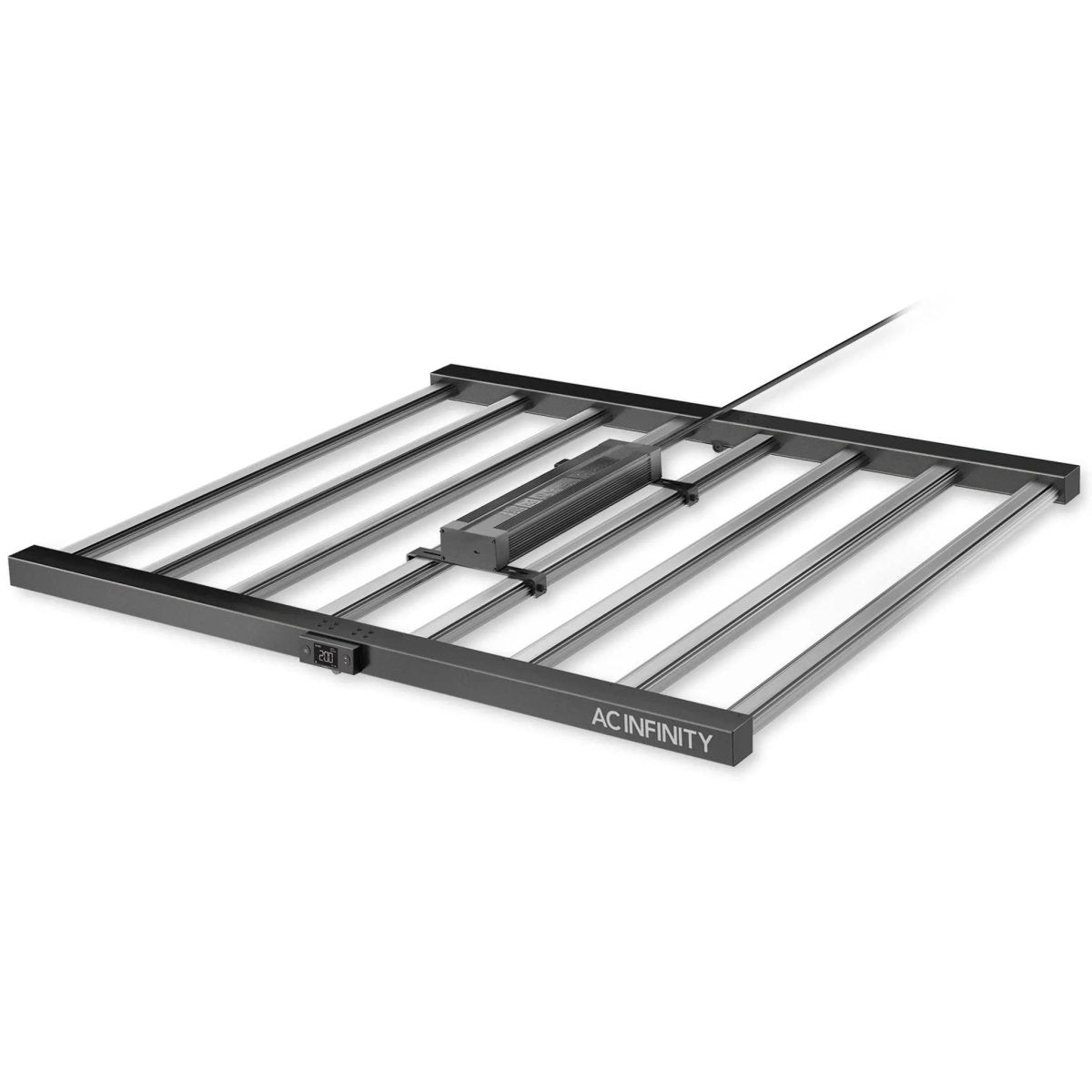

AC Infinity IONFRAME EVO8 Bar-Style Commercial LED Grow Light 730W

Commercial-Grade Samsung LM301H EVO Diodes (3.14 μmol/J) with 5×5 ft Coverage, Removable Driver & Integrated Sunrise/Sunset Scheduling

The AC Infinity IONFRAME EVO8 (AC-IF8K) is a flagship 730W bar-style LED grow light engineered for large-scale indoor cultivation and commercial 5×5 ft flowering footprints (6×6 ft vegetative coverage). Packed with 2,688 total LEDs - leds by genuine Samsung LM301H EVO chips achieving an individual diode efficiency of 3.14 μmol/J - the IONFRAME EVO8 delivers an incredible peak output of 2013 PPFD while maintaining superior energy efficiency over standard LM301H, LM301B, and Bridgelux 3030 chips.

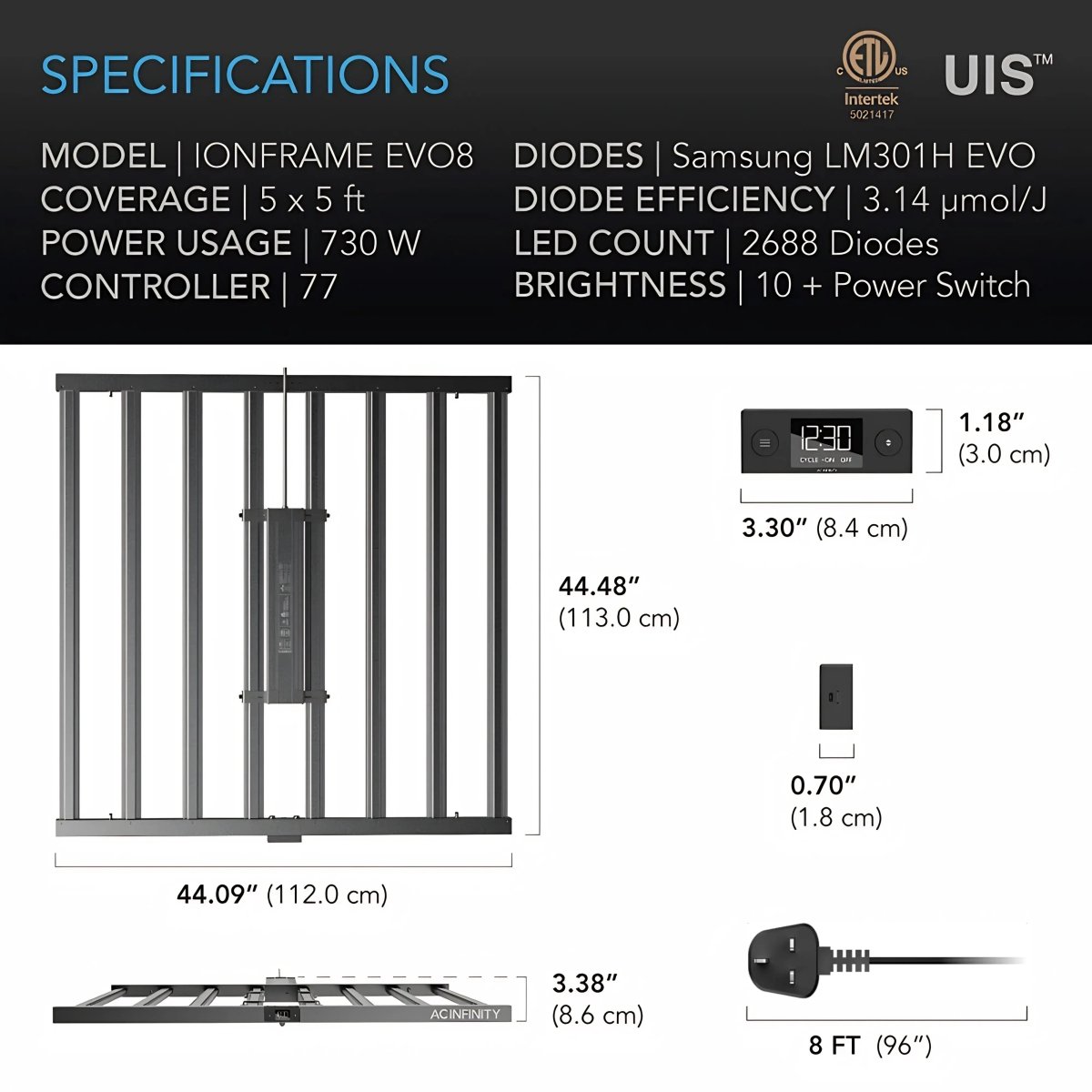

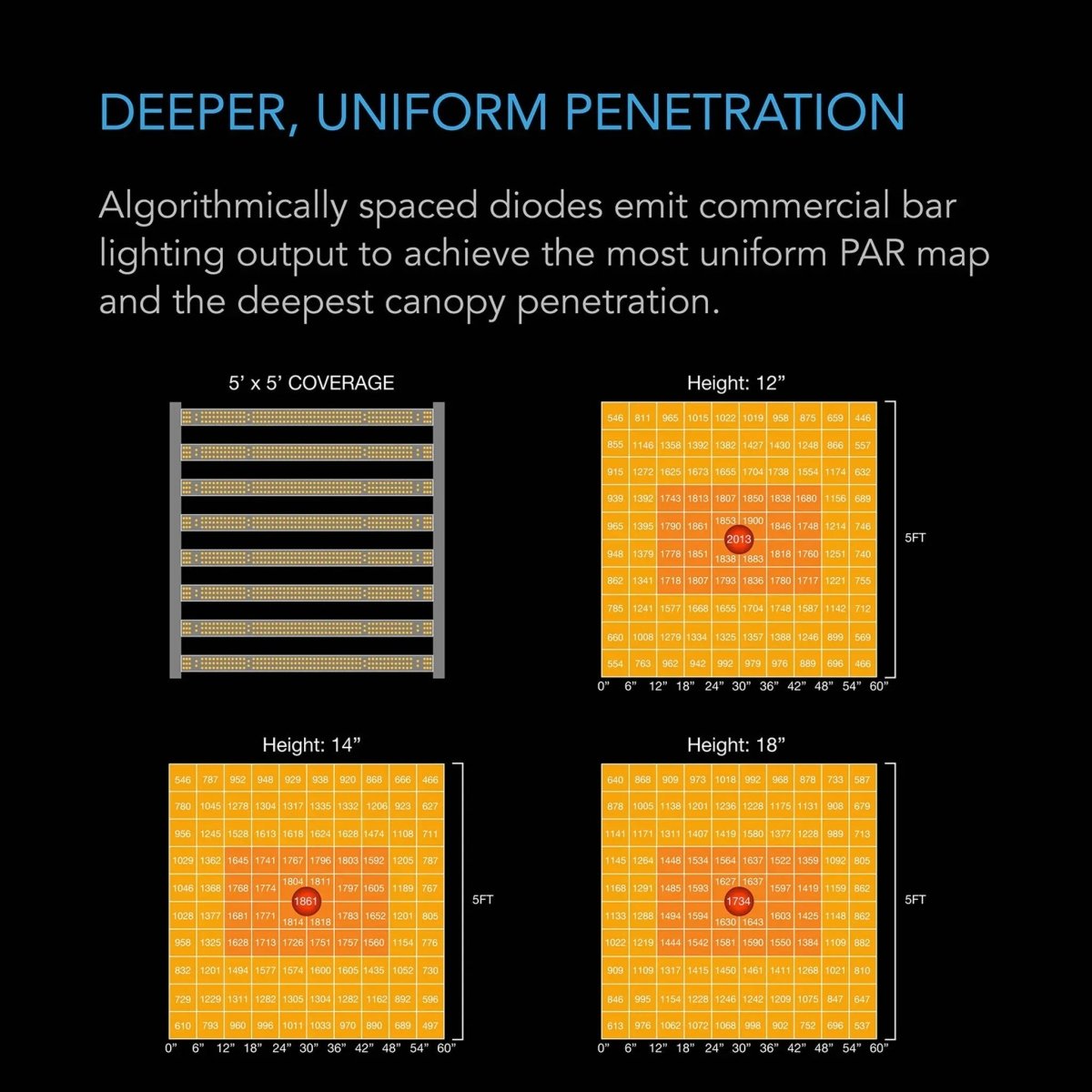

Designed with an expansive bar configuration (44.09" × 44.48"), the IONFRAME EVO8 algorithmically spaces diodes across its frame to eliminate hot spots and ensure uniform light intensity across large plant canopies. To help growers manage grow room heat loads, the high-output SOSEN-730W driver can be detached and mounted remotely outside the grow space. The included Schedule Controller offers 10 dimming levels, daily cycle timers, and a gradual sunrise/sunset mode that replicates natural outdoor light cycles. As part of the UIS™ ecosystem, it connects directly with smart controllers for remote Wi-Fi app automation or daisy-chains with up to 80 grow fixtures.

Key Architectural Differences: IONFRAME EVO8 vs. IONFRAME EVO4

• 2.4× Higher System Wattage: Scales total output from 300W up to a massive 730W, driven by an upgraded SOSEN-730W power supply.
• Expanded 5×5 ft Coverage: Increases flower coverage footprint from 3×3 ft to a full 5×5 ft (6×6 ft veg), ideal for large 5×5 grow tents or open-room arrays.
• Triple Diode Count (2,688 Chips): Houses 2,688 specialised diodes (vs. 896 on the EVO4), including 1,720 EVO 3000K, 864 EVO 5000K, (8) 395nm UV, (88) OSRAM 660nm deep red, and (8) OSRAM 730nm far-red chips.
• Higher Peak PPFD Output: Elevates maximum light density from 1819 PPFD to 2013 PPFD for intense canopy penetration during heavy flowering.
• ETL Certified Safety: Meets ETL electrical safety standards (Certificate #5021417) for commercial grow installations.

Key Product Features

• Samsung LM301H EVO Technology: Delivers industry-leading diode efficiency (3.14 μmol/J) with an enriched blue spectrum that promotes tighter internodal spacing and vigorous vegetative structure.

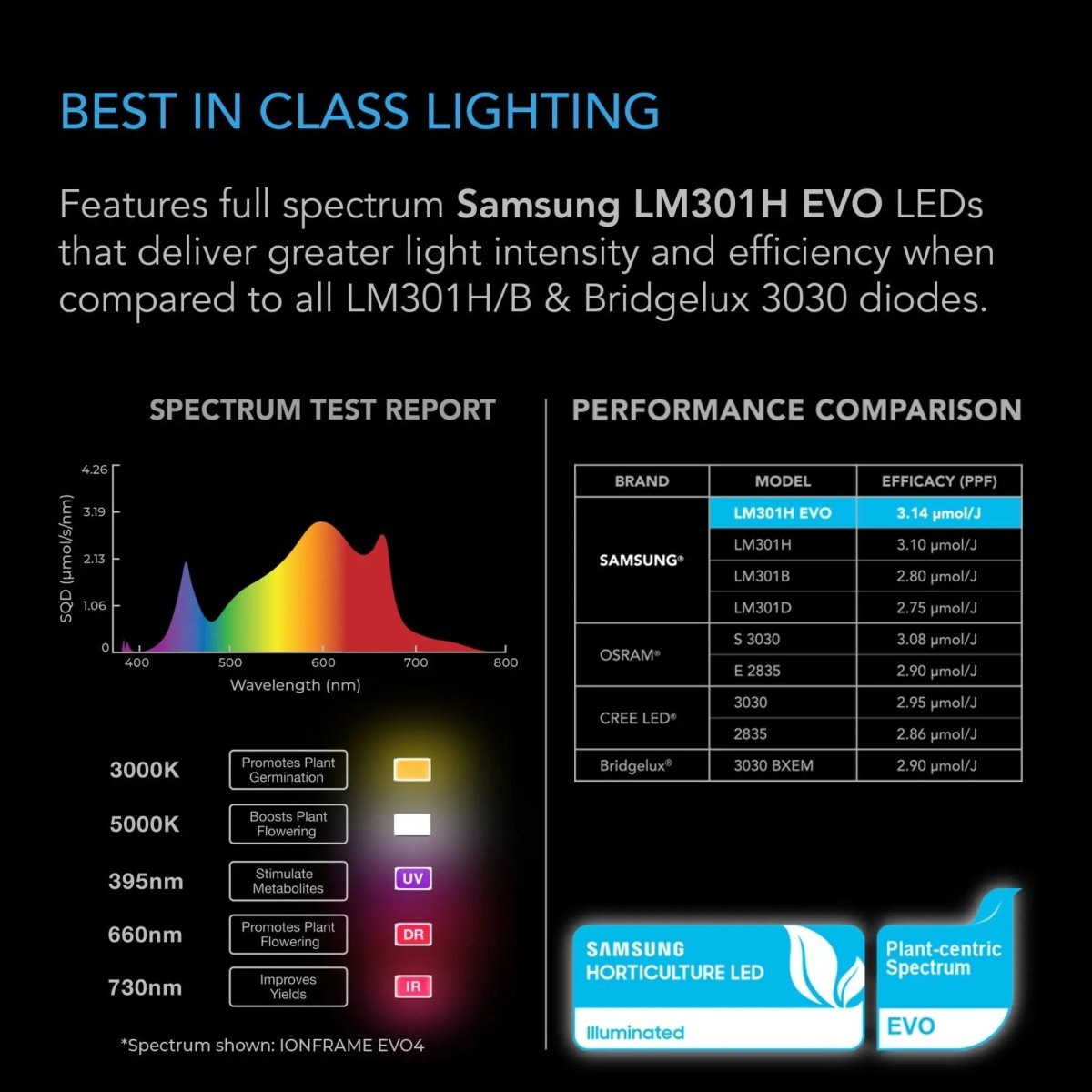

• Full UV-to-Far-Red Spectrum: Combines 3000K/5000K white diodes with 395nm UV, 660nm deep red, and 730nm far-red OSRAM LEDs to boost terpene, resin, and flower production.
• Removable Remote-Mount SOSEN Driver: Detachable 730W driver allows remote placement outside tents or rack setups, dramatically reducing grow room heat accumulation.

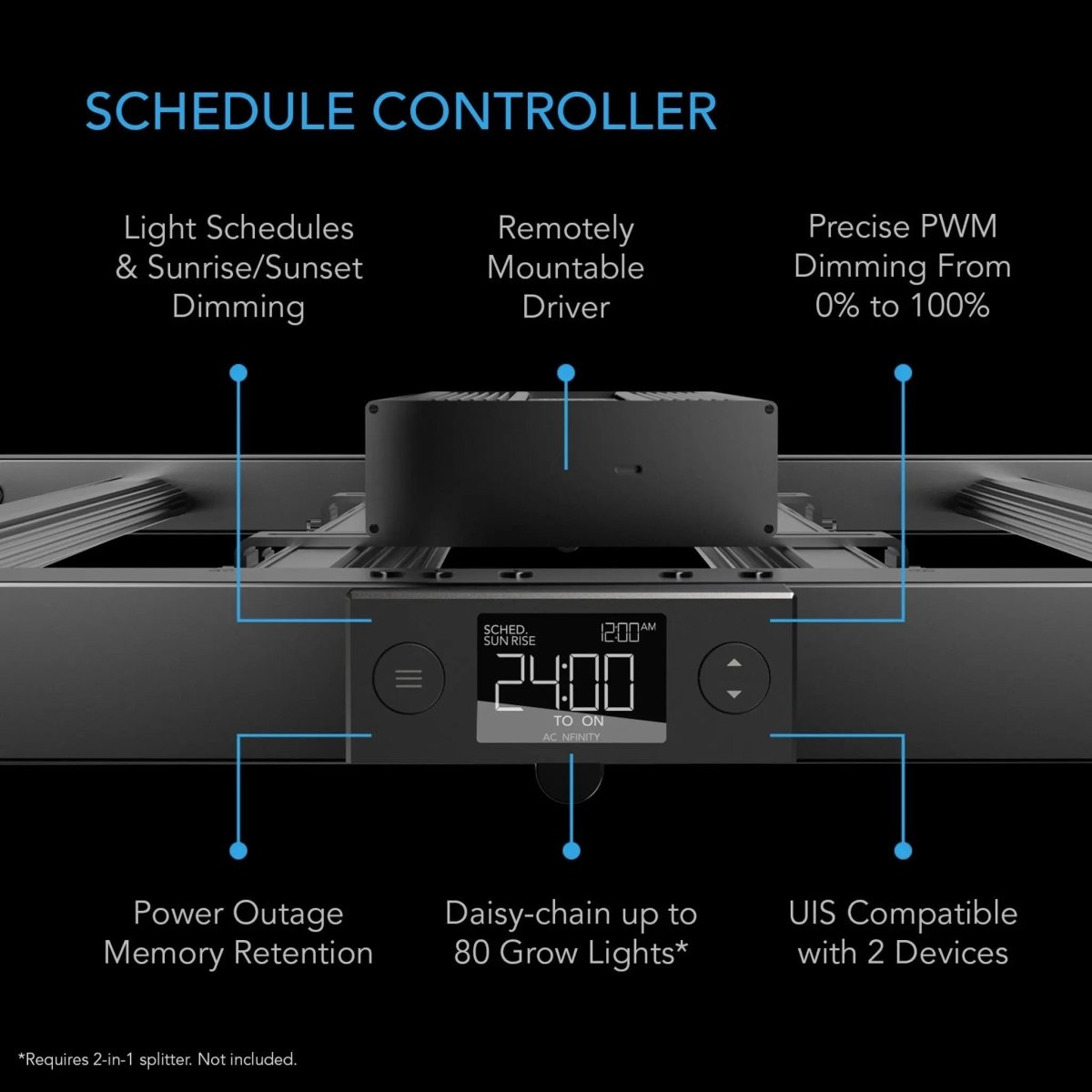

• Smart Sunrise & Sunset Simulation: Built-in digital schedule controller gradually brightens and dims lighting over custom time frames to prevent plant light shock.
• Large-Scale Daisy-Chain Capability: Daisy-chains up to 80 grow lights in a linear arrangement using RJ11/RJ12 splitter dongles for unified facility control.
• IP-65 Sealed & ETL Certified: Heavy-duty steel and aluminium chassis with sealed electronics withstand high-humidity environments (35–85% RH) and carry official ETL safety certification.

Comprehensive Technical Specifications

Real-World Applications

• Commercial & 5×5 Tent Cultivation: Provides full, edge-to-edge PAR light coverage across a 5×5 ft flowering footprint or large multi-light grow rooms.
• High-DLI Light Schedules: Ideal for high-intensity cropping strategies requiring max PPFD output without hotspots.

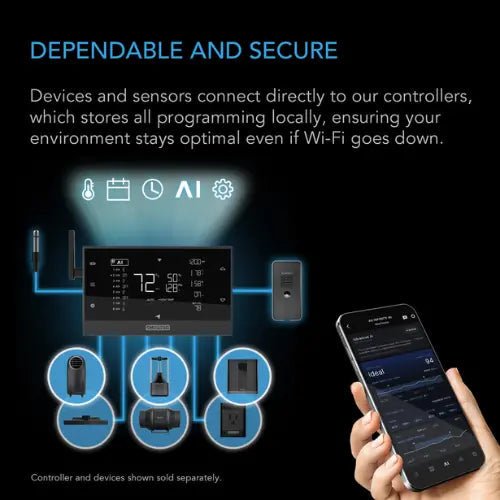

• UIS Smart Platform Integration: Pairs with CONTROLLER 69 PRO to automate light schedules, dimming levels, and environmental VPD targets via the AC Infinity app.
