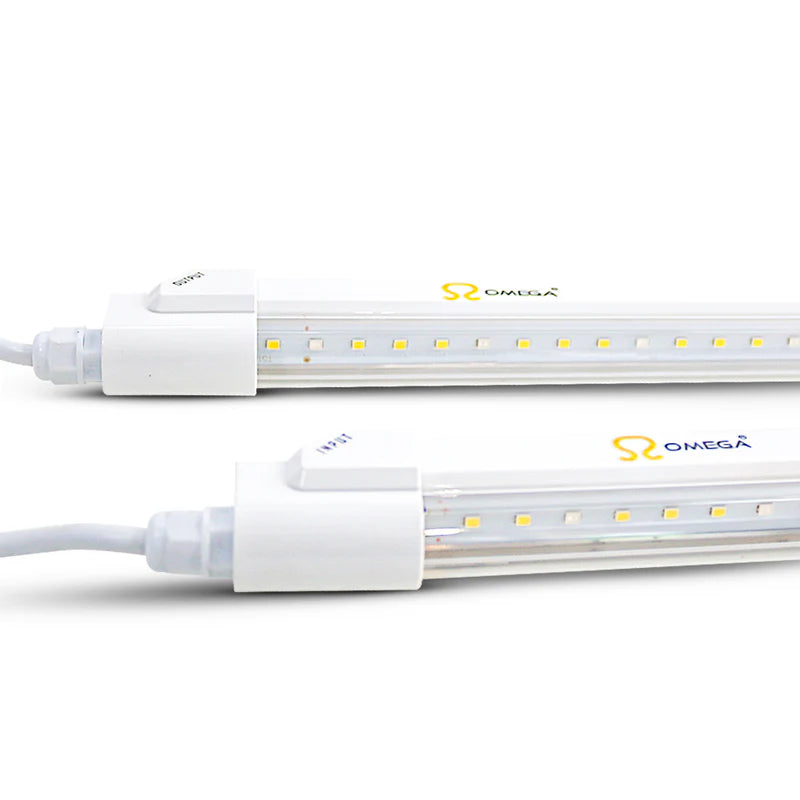

Omega Linear Propagation LED Twin Pack: Ultra-Slim Micro-Environment Luminaire
The Omega Linear Propagation LED is a compact, highly efficient low-profile lighting solution engineered specifically for early-phase laboratory incubation, specimen micro-environments, and primary material testing. Delivering consistent, ultra-low thermal emission, this luminaire provides optimal illumination for delicate early-stage structural development and material stability trials. Supplied as a convenient twin pack, it offers highly flexible coverage for small testing chambers or scalable multi-tier racking systems, serving as a practical, energy-efficient alternative to outdated fluorescent tubes.
Dual-Size Scale Availability
To fit your precise enclosure or racking specifications, this modular system is available in two distinct lengths:
-
9W Variant: Compact 54cm length - optimized for localized, small-scale enclosures.
-
18W Variant: Extended 117cm length - engineered for full-width racking and continuous benches.
Optimised Spectral Calibration & Physics
Delivering a Photosynthetic Photon Flux (PPF) of 17 µmol/s per strip (for the 9W model) at a system efficacy of 1.9 µmol/J, this linear bar provides precise, low-energy illumination.
-
High Color-Temperature Output: Utilising premium Samsung diodes, each strip emits a specialized, crisp blue-spectrum output (~9000K). This precise calibration is engineered to promote ultra-compact, uniform structural foundations without unwanted linear stretching.
-
Uniform Optical Spread: A wide 120° beam angle ensures perfectly even photon distribution across your entire workspace, eliminating localized pooling or shadow zones.
-
Extreme Scalability: Integrated daisy-chain functionality allows up to 100 individual strips to be linked in sequence on a suitable 20A circuit, allowing for rapid deployment across massive industrial installations.
Robust Build & Fluid Resistance
Weighing next to nothing, the ultra-slim housing features built-in utility mounting slots for hanging clips or zip-ties, facilitating instant tool-free installation. With a rated operational lifespan of up to 54,000 hours and a water-resistant IP-rated construction, these units are structurally built to maintain absolute electrical reliability in high-humidity incubation chambers and damp testing environments.
Deployment & Proximity Calibration Matrix
-
Enclosure Compatibility: Ideal for multi-tier laboratory racks, humidity domes, specimen chambers, and environment-controlled storage arrays.
-
Mounting Proximity: For optimal photon delivery without thermal stress, mount the fixture approximately 20–30 cm above the target testing surface.
-
Parallel Spatial Gap: When installing multiple parallel bars across a wide rack, space the strips 25–30 cm apart to lock in a perfectly seamless overlap.
Technical Specifications (9W Model Data)
| Feature |
Technical Specification |
| Available Power Options |
9W (54cm length) | 18W (117cm length) |
| PPF Output |
9w 17 µmol/s per bar. 18w 36 µmol/s per bar |
| System Efficacy |
1.9 µmol/J |
| Input Voltage Range |
100–277V |
| Spectral Output Color |
~9000K High-Temperature Spectrum |
| Internal Semiconductor hardware |
Samsung Diode Array |
| Daisy-Chain Capacity |
Up to 100 strips on a 20A circuit |
| Operational Lifespan |
54,000 Hours |
| Compliance Marks |
CE & UKCA Certified |
| 9W Dimensions |
L545mm x W75mm x H85mm |

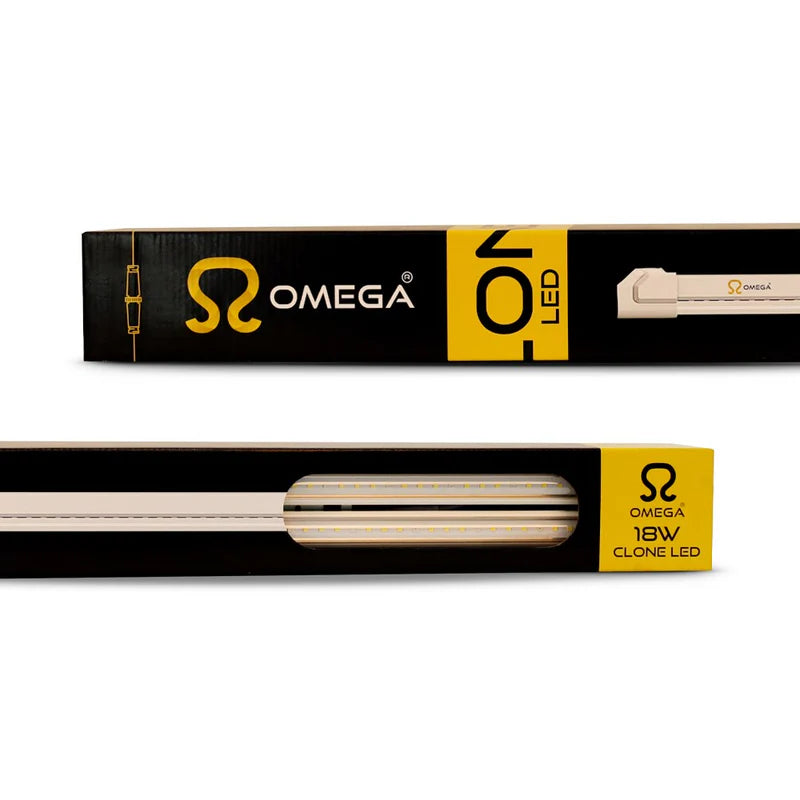

In the Box:
-
2 x Omega Linear LED Strips (Twin Pack)
-
1 x Multi-Option Mounting Clip & Suspension Accessory Kit
-
1 x Daisy-Chain Interconnect Cable
-
1 x Technical User Manual
