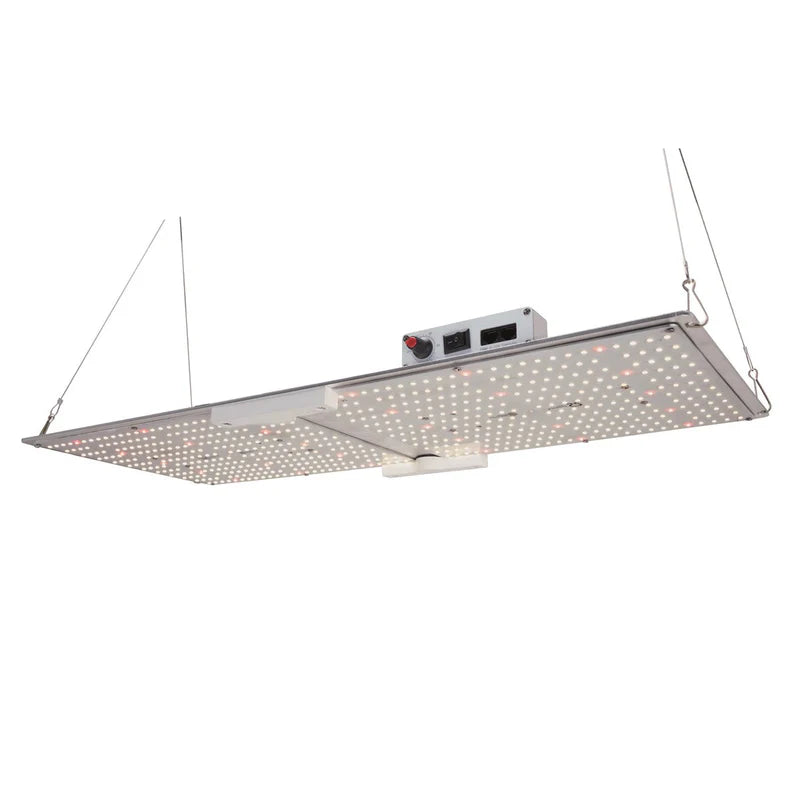

Omega Spectra G-Line G220 LED: Slimline High-Efficiency Auxiliary Luminaire
The Omega Spectra G-Line G220 is a highly efficient, lightweight full-spectrum LED fixture designed to operate as either an independent primary light source or a supplementary optical unit. Engineered to withstand harsh industrial environments, this durable luminaire provides years of maintenance-free operation. It is the ideal solution for setups requiring precise, efficient, and highly uniform levels of Photosynthetic Photon Flux Density (PPFD).
Advanced Thermal Management & Efficiency
-
Cool-Running Technology: Unlike traditional High-Pressure Sodium (HPS) systems that generate substantial infrared heat loads, the G-Line architecture features passive thermal dissipation. This keeping operating temperatures low and drastically simplifies facility climate control.
-
Energy Efficiency: The G220 draws a minimal 220W of power while matching the raw luminous output of higher-wattage traditional discharge lamps, drastically lowering operational energy costs.
Industrial Build Quality & Longevity
Constructed with premium internal components—including market-leading Samsung LM301B chips and a highly reliable Mean Well LED driver—the G220 is built for continuous, multi-year deployment.
-
Extended Lifespan: Rated for 50,000 hours or more of continuous runtime without any degradation in spectral output.
-
Robust Protection: The main chassis is a fully waterproof unit designed to resist moisture and dust ingress in high-humidity technical spaces.
-
Silent Operation: Completely solid-state construction ensures 100% silent performance with no moving parts or cooling fans to fail.
Installation & Deployment Quick-Guide
Thanks to its ultra-slim profile and a lightweight chassis weighing just 3.2kg, the G220 is exceptionally straightforward to install. Suspended via the included adjustable heavy-duty cables, it can be integrated directly into standard mains power. Because it draws only 220W, it operates perfectly alongside heavy-duty mechanical or digital control timers.
System Target Footprints & Mounting Proximity
To optimize photon distribution, uniformity, and intensity across your targeted workspace, use the following operational parameters:
Target Footprint Coverage
Recommended Fixture Clearance Profile
-
Low Intensity Mode (Initial Setup): Hang at $61 - 76.2\text{ cm}$ from target surface
-
Medium Intensity Mode (Standard Calibration): Hang at $45.7 - 61\text{ cm}$ from target surface
-
Maximum Intensity Mode (Peak Output Performance): Hang at $30.5 - 45.7\text{ cm}$ from target surface
Technical Specifications
| Feature |
Technical Specification |
| Power Consumption |
220W |
| System Efficacy |
2.8 µmol/J |
| Total PPF Output |
600 µmol/s |
| Input Voltage Range |
120–277V |
| Component Hardware |
Samsung LM301B Diodes & Mean Well Driver |
| Operational Lifespan |
50,000+ Hours |
| Chassis Weight |
3.2kg |
| Physical Dimensions |
L645mm x W265mm x H63mm |
| Warranty Protection |
3-Year Manufacturer Warranty |
