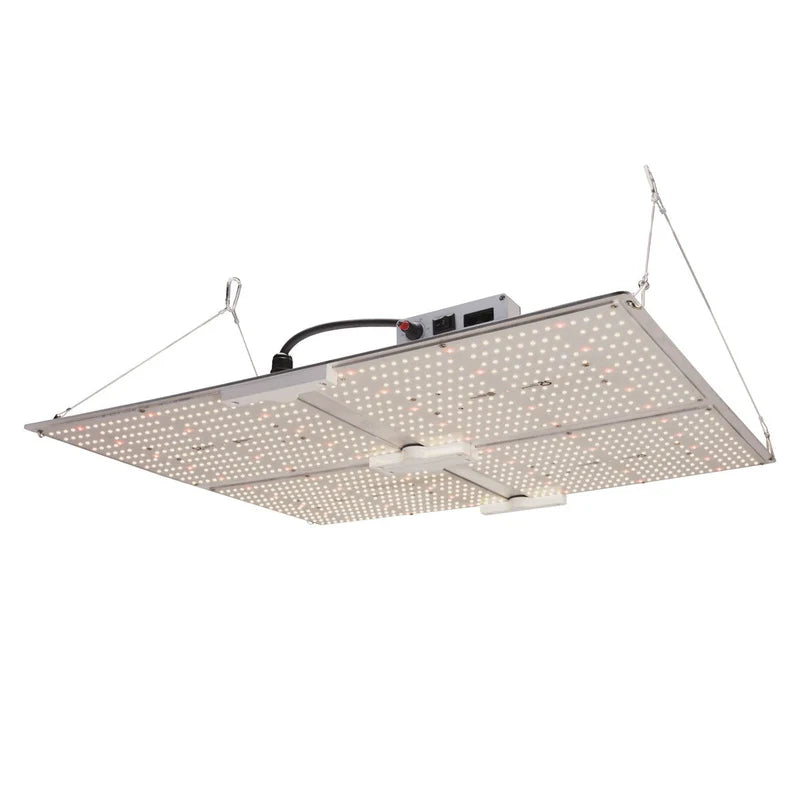

Omega Spectra G-Line G430 LED: High-Output Mid-Range Luminaire
The Omega Spectra G-Line G430 is a highly efficient, lightweight full-spectrum LED fixture engineered to serve as a high-intensity primary lighting installation or a heavy-duty auxiliary unit. Designed to operate flawlessly in demanding, high-condensation facility environments, this robust solid-state luminaire provides maintenance-free performance over years of continuous deployment. It is ideal for technical operations requiring absolute precision, high output, and exceptional uniformity in Photosynthetic Photon Flux Density (PPFD).
Advanced Thermal Engineering & Efficiency
-
Passive Thermal Management: Traditional High-Pressure Sodium (HPS) systems project massive infrared heat loads into a workspace. In contrast, the G430 features "cool-running" passive heat dissipation, significantly lowering ambient thermal signatures and reducing the load on your facility's ventilation systems.
-
Energy Optimization: Operating at a true power draw of 430W, the G430 matches or exceeds the raw luminous output of traditional high-wattage gas-discharge lamps, offering massive reductions in power consumption.
Industrial Build Quality & System Longevity
Utilising premium, tier-one internal hardware—including high-efficiency Samsung LM301B diodes and a heavy-duty Mean Well LED driver—the G430 is built for continuous, industrial-scale duty cycles.
-
50,000-Hour Operational Lifespan: Eliminates the need for recurring bulb replacements or lamp degradation cycles, maintaining structural spectral integrity for years.
-
Ingress Protection: The fully waterproof chassis is sealed against moisture and dust, making it safe for wash-down zones and humid micro-climates.
-
Zero Noise Pollution: Solid-state passive cooling means the entire fixture operates completely silently, with no mechanical fans or moving parts prone to failure.
Installation & Configuration Profile
Weighing just 6.2kg, this slimline fixture offers a high power-to-weight ratio that makes suspension and spatial configuration incredibly straightforward. It functions seamlessly across standard industrial voltage ranges (120–277V) and can be easily integrated into commercial timing networks and power circuits.
Target Spatial Footprints & Proximity Mapping
To maximise photon delivery, uniformity, and intensity across your targeted testing or production zones, calibrate your installation using the following metrics:
Target Footprint Coverage
Recommended Fixture Clearance Profile
-
Low-Intensity Operation (Initial Calibration): Position at $61 - 76.2\text{ cm}$ from the target surface
-
Medium-Intensity Operation (Standard Calibration): Position at $45.7 - 61\text{ cm}$ from the target surface
-
Peak-Intensity Performance (Maximum Calibration): Position at $30.5 - 45.7\text{ cm}$ from the target surface
Technical Specifications
| Feature |
Technical Specification |
| Power Consumption |
430W |
| Total PPF Output |
1200 µmol/s |
| System Efficacy |
2.8 µmol/J |
| Input Voltage Range |
120–277V |
| Component Hardware |
Samsung LM301B Chips & Mean Well Driver |
| Operational Lifespan |
50,000+ Hours |
| Chassis Weight |
6.2kg |
| Physical Dimensions |
L645mm x W535mm x H63mm |
| Warranty Protection |
3-Year Manufacturer Warranty |
