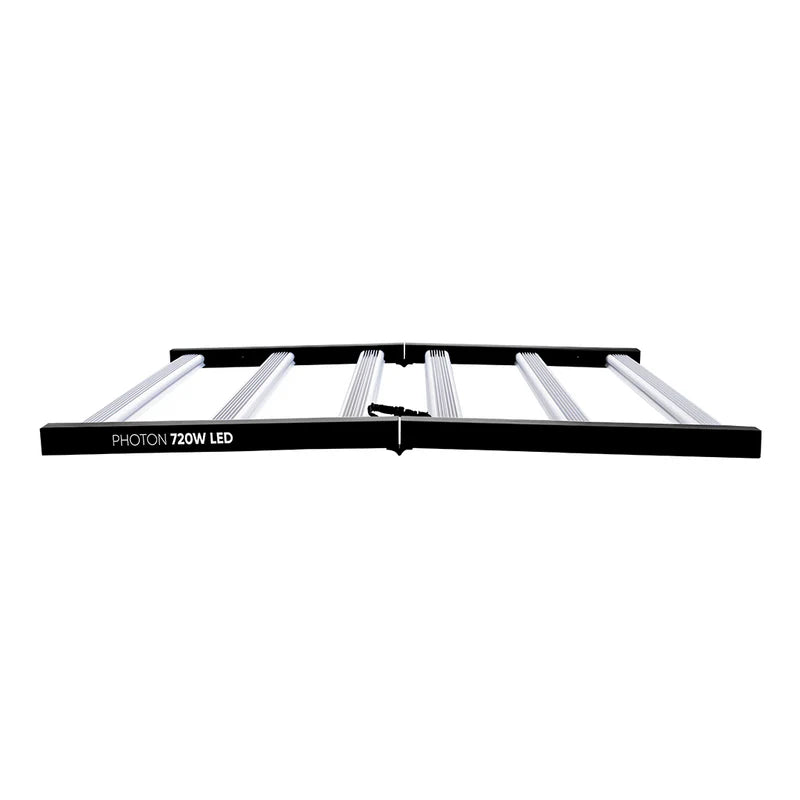

Photon 720W LED Grow Light: High-Efficiency Multi-Bar Commercial Luminaire
The Photon 720W LED is a high-performance commercial lighting solution engineered to deliver exceptional luminous efficiency and precision optical coverage. Combining an advanced, broad-spectrum output with a reliable built-in driver system, this heavy-duty fixture provides stable, high-intensity lighting conditions for demanding facility environments, R&D labs, and technical installations.
Optimised Optical Spread & Power

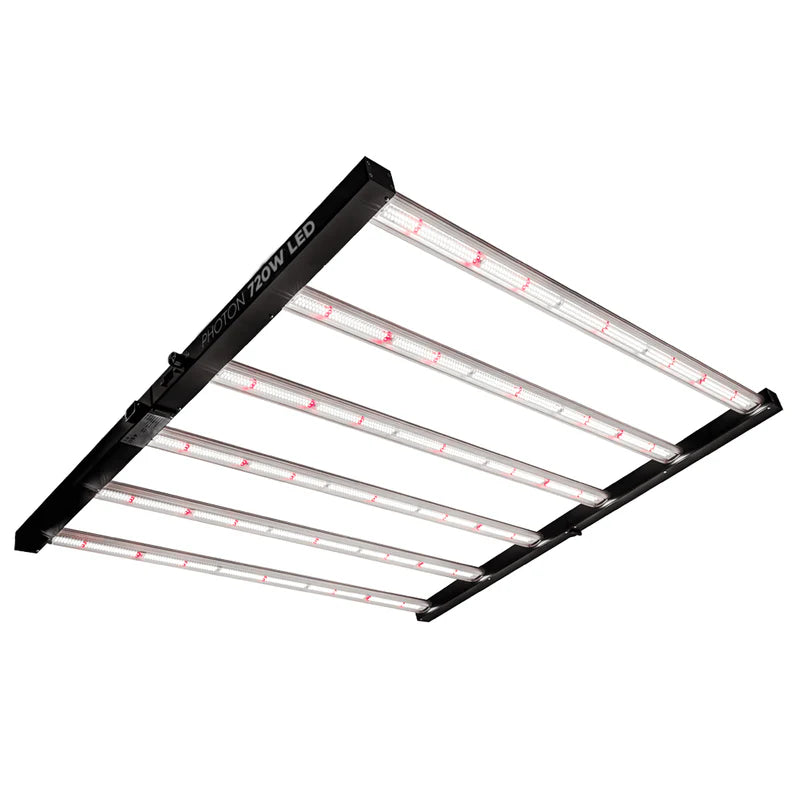

The luminaire is configured with a specialised 6-bar array and a wide 120° beam angle. This physical layout ensures uniform, edge-to-edge light distribution across a broad target footprint, eliminating hot spots and center-heavy pooling.
-
Massive Luminous Output: Delivers a high Photosynthetic Photon Flux (PPF) of 2304 µmol/s.
-
Industry-Leading Efficiency: Operates at a highly competitive efficacy of 3.2 µmol/J, minimising power consumption and operational heat signatures while maintaining maximum photon output.
Scalable Industrial Control
Designed with scalability in mind, the Photon 720W features an integrated 0–100% dimming dial for immediate local control. For large-scale multi-fixture installations, the built-in RJ11 network ports allow you to daisy-chain up to 40 fixtures together, enabling unified management via external master controllers. Its folding, low-profile design minimises spatial restrictions in tight or tiered racking systems.
Key Technical Features
-
Integrated Power Architecture: Features a built-in driver system for a streamlined, single-piece installation.
-
Fully Certified: Built to rigorous standards with official CE and UKCA compliance marks.
-

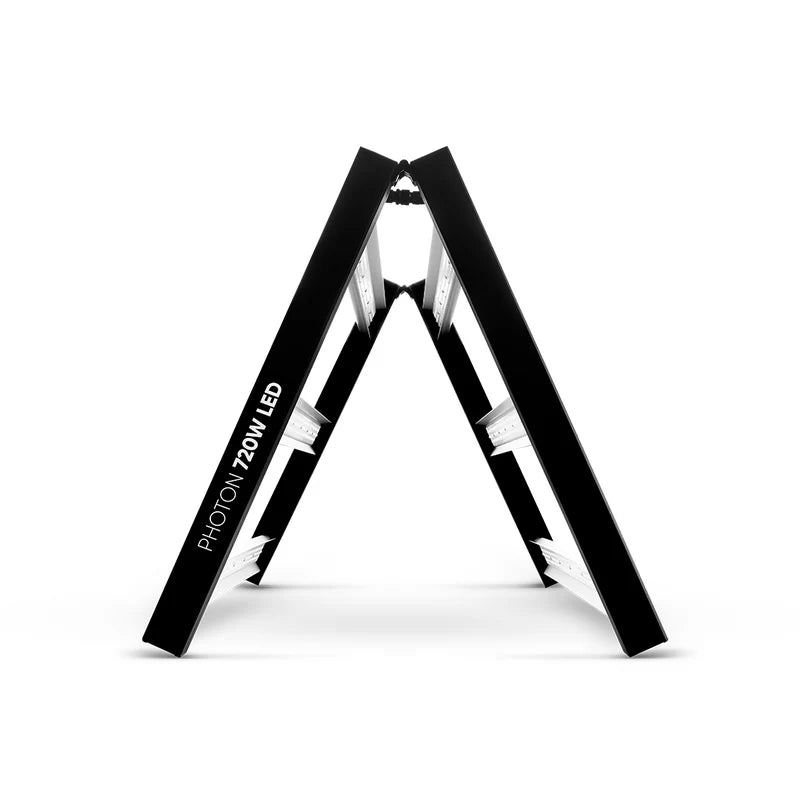

Robust Framework: Slim 40mm profile with a sturdy, foldable space-saving chassis.
Technical Specifications
| Specification |
Technical Detail |
| Total Wattage |
720W |
| PPF Output |
2304 µmol/s |
| System Efficacy |
3.2 µmol/J |
| Input Voltage |
186–265V |
| Amperage |
Max 4A |
| Dimming Range |
0–100% (Manual & Controller Compatible) |
| Daisy-Chain Capacity |
Up to 40 Fixtures via RJ11 Ports |
| Array Configuration |
6-Bar Linear Layout |
| Fixture Dimensions |
1043mm x 1083mm x 40mm |
| Certifications |
CE & UKCA Approved |
In the Box:
-
1 x Photon 720W LED Fixture
-
1 x 1.8m UK Power Cord
-
1 x RJ11 Network Cable
-
2 x Heavy-Duty Rope Ratchets
-
1 x Technical User Manual
