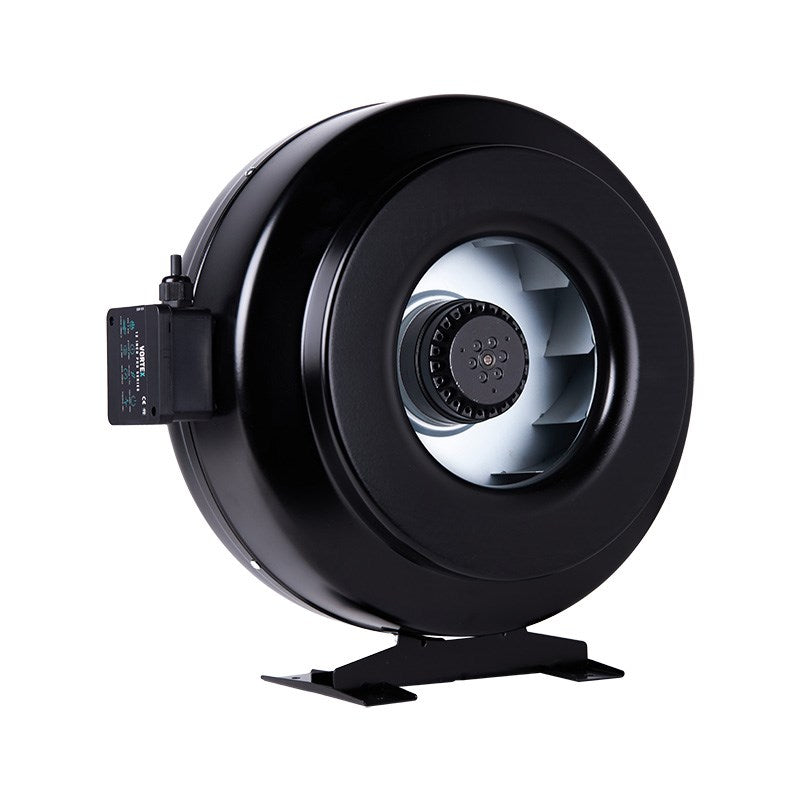

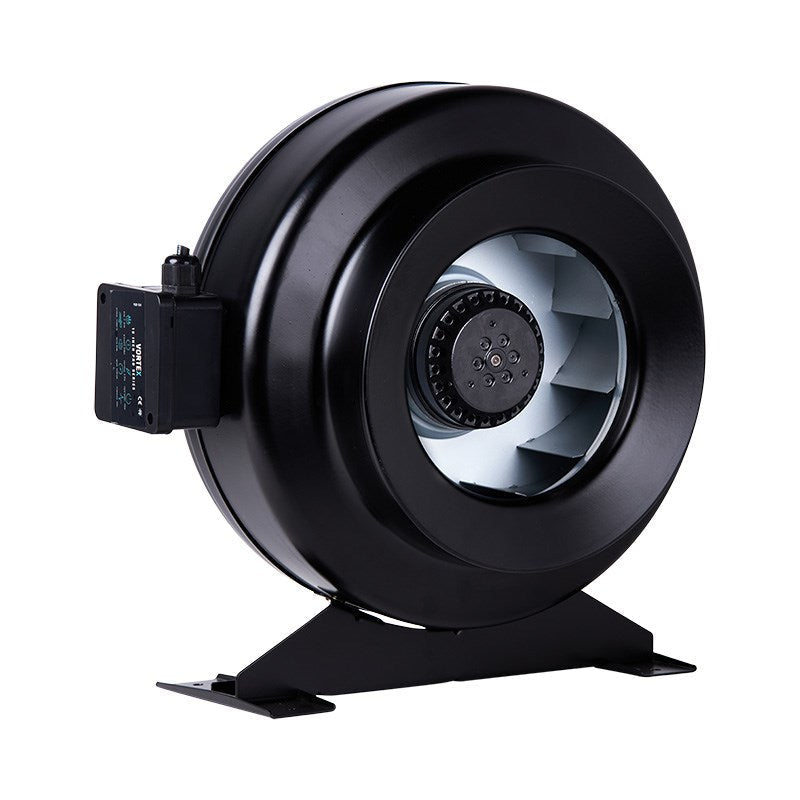

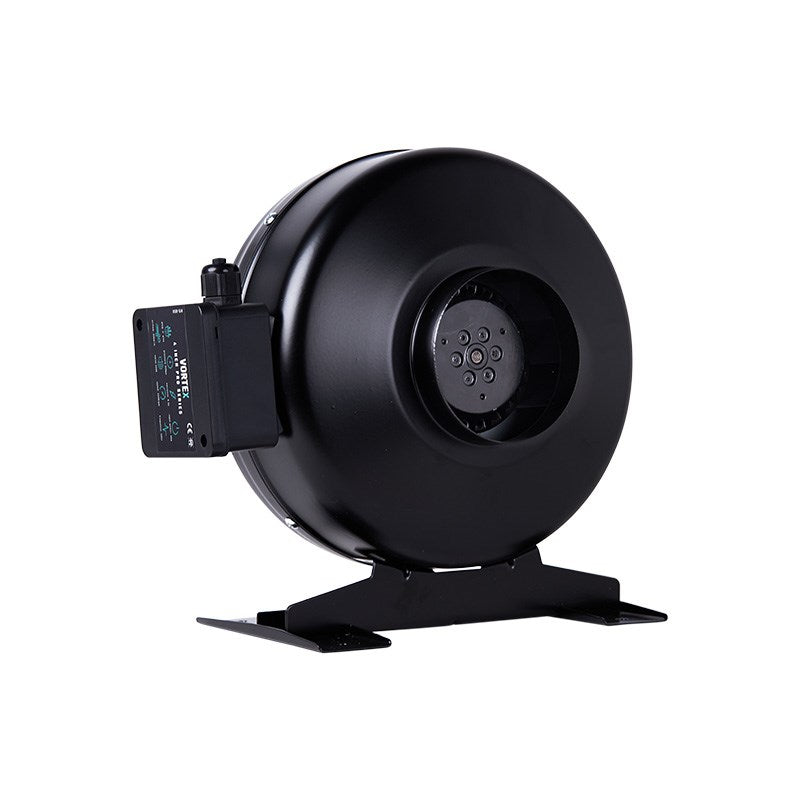

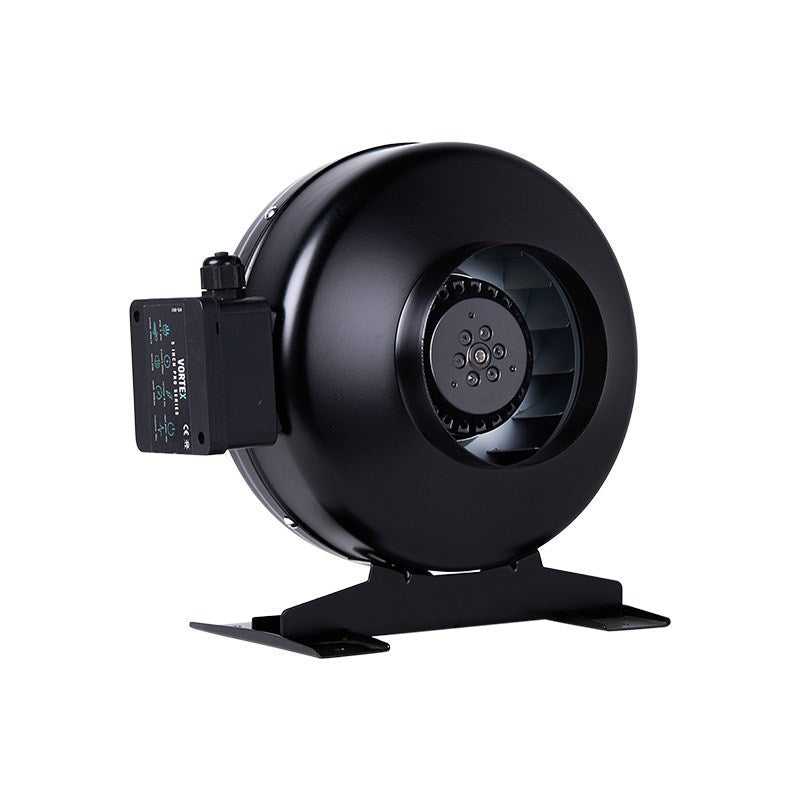

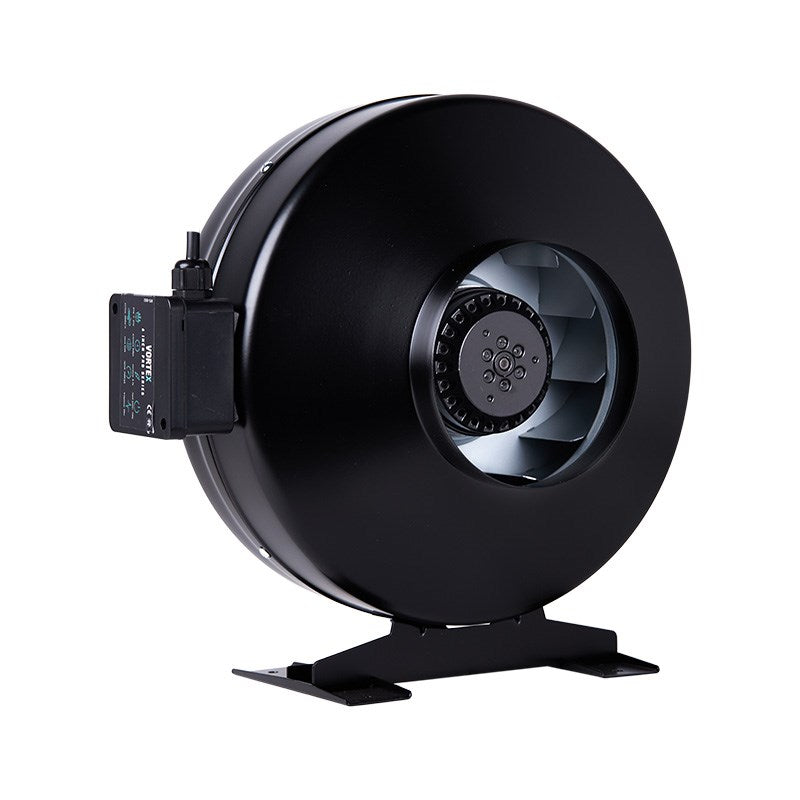

Vortex Inline Fans

Vortex Inline Fans

£64.99 GBP
£64.99 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Size

PLEASE NOTE: This Product is delivered direct from Supplier - Delivery is usually 1 - 3 business days

Grow lights are a vital part of indoor gardening, but the intense heat they generate can easily scorch plant canopies and cause severe stress to delicate root systems. The Vortex Inline Extractor Fan is designed to clear out hot, stagnant air and continuously refresh your grow room environment, protecting your crop from thermal fluctuations and maintaining ideal growing conditions.

Engineered with high-grade internal components, this fan features an advanced ball-bearing motor that significantly reduces operational noise for whisper-quiet performance. This low-friction bearing design also minimises internal mechanical wear, extending the overall lifespan of the motor. For total safety, each unit comes equipped with an integrated thermal overload protection system that automatically cuts power if internal temperatures exceed safe operating limits.

Suitable for any indoor cultivation environment—from micro grow tents and dedicated grow rooms to residential greenhouses—the Vortex Inline Fan comes ready to run out of the box with a pre-wired 2-metre UK main cable and a built-in mounting bracket.

How to Install & Use:

  1. Position the fan at your desired height in the grow space using the built-in mounting bracket and heavy-duty cable ties or ratchet hangers.

  2. Attach your flexible aluminium ducting (or carbon filter spigot) to the fan housing.

  3. Secure all connections tightly using quick-release duct clamps, using a screwdriver if necessary to ensure an air-tight seal.

  4. Plug the pre-wired 2m lead into a standard UK mains socket to activate.

Pro-Tip: Pair this inline fan with an appropriately rated carbon filter and ducting kit to create a complete, odour-controlled extraction system for your grow tent.

Key Benefits:

  • Effective Climate Management: Rapidly clears intense heat build-up from HID and LED grow lights while removing humid, stagnant air pockets.

  • Whisper-Quiet Operation: Premium ball-bearing design dampens mechanical friction and operational vibration for ultra-discreet running.

  • Thermal Overload Protection: Built-in automatic safety cut-off prevents motor overheating for long-term peace of mind.

  • Plug & Play Setup: Features an integrated mounting bracket and comes pre-wired with a 2-metre mains lead and fitted 3-pin UK plug.

  • Certified Quality: Manufactured to strict compliance standards (CE and RoHS certified) for safe continuous use in high-humidity indoor environments.

Specifications:

  • Brand: Vortex

  • Motor Type: Sealed Ball-Bearing Motor

  • Safety Features: Auto-reset thermal overload protection

  • Power Cable: 2m pre-wired lead with standard UK 3-pin plug

  • Certifications: CE & RoHS Certified

  • Applications: Suitable for grow tents, grow rooms, and greenhouses

View full details

Build a well-ventilated grow space with our range of extraction fans, ducting, and carbon filters, engineered to manage heat, humidity, and odour so your plants thrive in a controlled environment.

Not sure what size fan or filter you need? Use our Equipment Calculators to work out the right extraction rate for your grow space.

Frenquently Asked Questions

Find answers to common questions about Ventilation

As a general rule, you should aim to exchange the air in your grow space every 1–3 minutes. To calculate the required fan capacity, multiply your room volume (length × width × height in metres) by 20–60 to get the minimum m³/h rating. For example, a 1.2m × 1.2m × 2m tent (2.88m³) needs a fan rated at least 58–173 m³/h.

CFM (cubic feet per minute) and m³/h (cubic metres per hour) are both units of airflow. To convert CFM to m³/h, multiply by 1.699. So a 200 CFM fan equals approximately 340 m³/h. Most UK and EU fans are rated in m³/h, while US products often use CFM.

Your carbon filter should be rated at the same or higher m³/h than your fan. Using an undersized filter will reduce its effectiveness and shorten its lifespan. Mammoth Carbon Filters are sized to match common fan ratings — check the product specifications for the recommended fan pairing.

Most carbon filters last 12–18 months under normal use, but this depends on humidity levels, air quality, and how continuously the fan runs. High humidity (above 70% RH) can saturate the activated carbon faster. Running your fan at a lower speed with a fan controller can extend filter life significantly.

Static pressure (measured in Pa or mmH₂O) matters when air has to pass through ducting, bends, or a carbon filter — all of which create resistance. For most grow tent setups with a carbon filter and 1–2m of ducting, look for a fan with at least 150–250 Pa of static pressure to maintain effective airflow.
